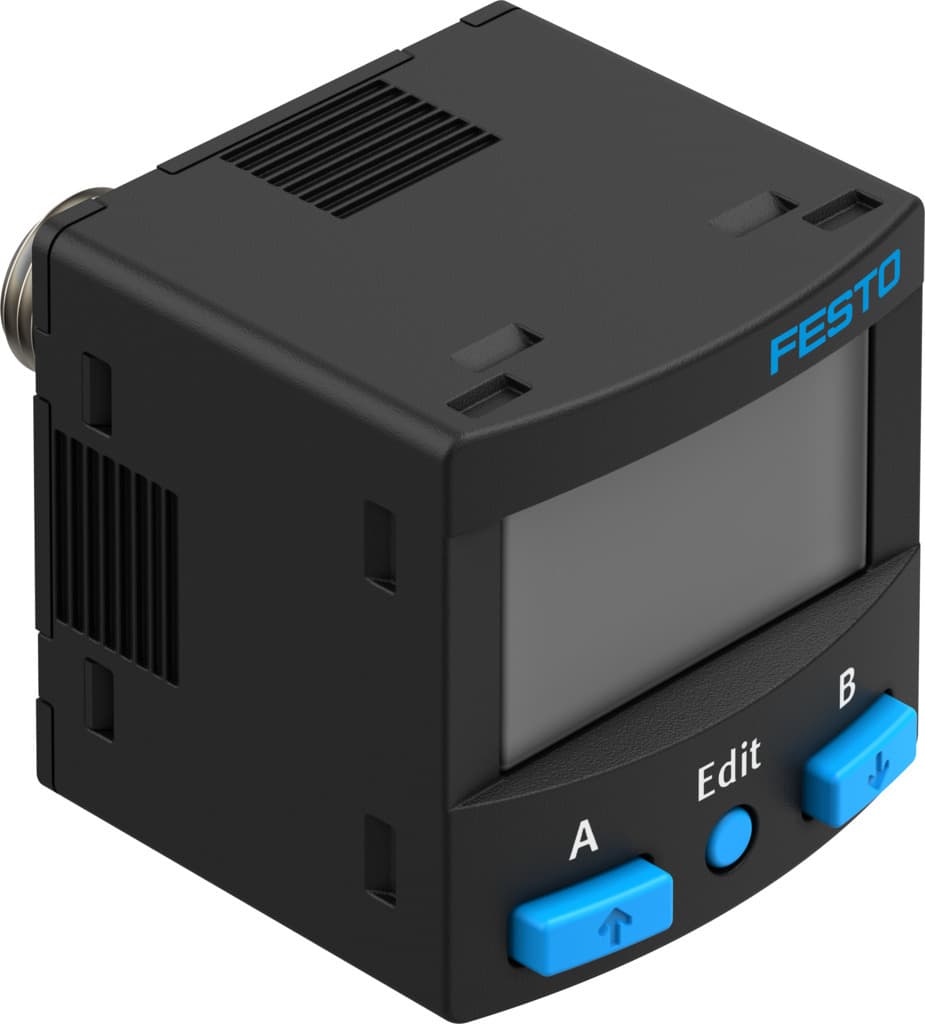

Product Model
span-b-b11r-r18m-pn-l1+2.5s
Selling Points
- 1High Accuracy Pressure Measurement: Measures relative pressure with a piezo resistive measuring cell for precise readings.
- 2Compact Design: Dimensions of just 30 x 30 mm, suitable for various industrial applications.
- 3Flexible Electrical Outputs: Switchable electrical outputs for easy integration into different systems.
- 4Adjustable Low-Pass Filter: Smooths the pressure signal to reduce noise and improve stability.
- 5Scalable Analogue Output: Increases signal dynamics for enhanced performance in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Symbol | 00997331 | Certification | RCM compliance mark c UL us - Listed (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Note on materials | RoHS-compliant | Measured variable | Relative pressure |
Method of measurement | Piezoresistive pressure sensor | Pressure measuring range initial value | -14.5psi |
Pressure measuring range end value | 145psi | Max. overload pressure | 15bar |
Overload pressure | 217.5psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible | Temperature of medium | 0°C 50°C |
Ambient temperature | 0°C 50°C | Accuracy in ± % FS | 1.5%FS |
Repetition accuracy in ± %FS | 0.3%FS | Temperature co-efficient in ± %FS/K | 0.1%FS/K |
Switching output | PNP/NPN switchable | Switching function | Window comparator Threshold value comparator |
Switching element function | N/C contact/N/O contact switchable | Max. output current | 80mA |
Short-circuit protection | yes | DC operating voltage range | 10.8V 30V |
Reverse polarity protection | for all electrical connections | Electrical connection 1, connection type | Plug |
Electrical connection 1, connection technology | Connection diagram L1J | Electrical connection 1, number of pins/wires | 4 |
Electrical connection for input 1, connection pattern | 00995428 | Type of mounting | Front panel mounting With thread With wall/surface bracket |
Mounting position | Any | Pneumatic connection | External thread R1/8 |
Product weight | 31g | Housing material | PA-reinforced |
Materials in contact with the media | FPM Brass, nickel-plated PA-reinforced | Display type | Illuminated LCD |
Displayable unit(s) | MPa bar inHg kPa mmHg psi | Setting options | Teach-in Via display and pushbuttons |
Protection against tampering | PIN code | Setting range threshold value | 0% 100% |
Setting range hysteresis | 0% 90% | Degree of protection | IP40 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Cleanroom class | Class 4 according to ISO 14644-1 | Manufacturer ID | 8114768 |
Specifications may be subject to change without notice
