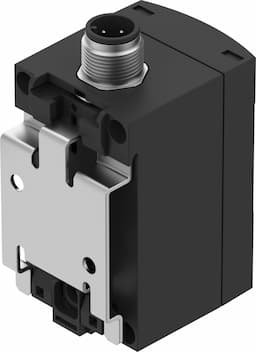

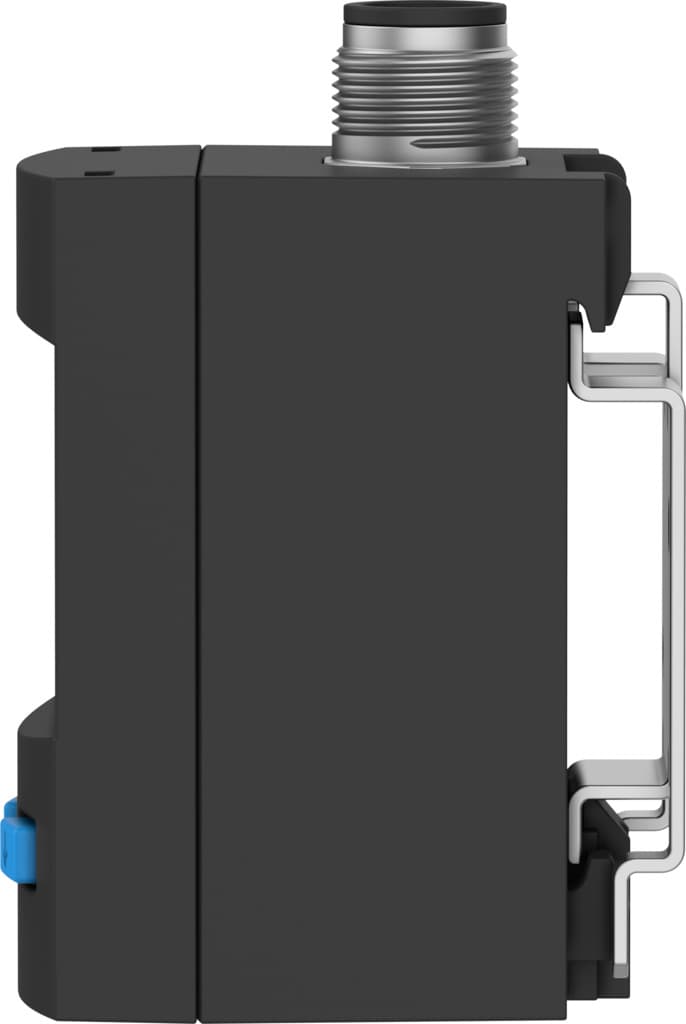

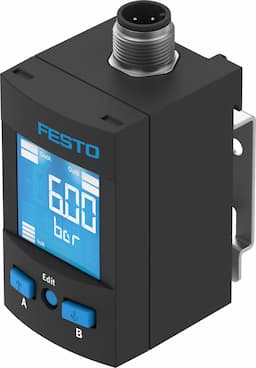

Product Model
spau-b11r-w-g18fd-l-pnlk-pnvba-m12u
Selling Points
- 1High Accuracy: Measures relative pressure with ±1.5% FS accuracy.
- 2IO-Link Connectivity: Supports IO-Link protocol for seamless communication and data transfer.
- 3Versatile Mounting: Available in wall/surface mount and threaded mounting options.
- 4Wide Pressure Range: Covers -1 to 10 bar pressure range with G1/8 connection.
- 5Robust Design: IP65 and IP67 degrees of protection ensure durability in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Symbol | 00995410 | Certification | RCM compliance mark c UL us - Listed (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
KC characters | KC EMC | Note on materials | RoHS-compliant |
Measured variable | Relative pressure | Method of measurement | Piezoresistive pressure sensor |
Pressure measuring range initial value | -14.5psi | Pressure measuring range end value | 145psi |
Overload pressure | 217.5psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible | Temperature of medium | 0°C 50°C |
Ambient temperature | 0°C 50°C | ADC resolution | 12bit |
Accuracy in ± % FS | 1.5%FS | Repetition accuracy in ± %FS | 0.3%FS |
Temperature co-efficient in ± %FS/K | 0.05%FS/K | Switching output | 2 x PNP or 2 x NPN switchable 2xPNP |
Switching function | Freely programmable | Switching element function | N/C contact/N/O contact switchable |
Max. output current | 100mA | Analog output | 0 - 10 V 4 - 20 mA 1 - 5 V |
Rise time | 3ms | Max. load resistance of current output | 500Ohm |
Min. load resistance of voltage output | 10kOhm | Short-circuit protection | yes |
Protocol | IO-Link? | IO-Link?, protocol version | Device V 1.1 |
IO-Link?, profile | Smart sensor profile | IO-Link?, function classes | Binary data channel (BDC) Process data variable (PDV) Identification Diagnostics Teach channel |
IO-Link?, communication mode | COM2 (38,4 kBd) | IO-Link?, SIO mode support | Yes |
IO-Link?, port class | A | IO-Link?, process data width OUT | 0 Byte |
IO-Link?, process data width IN | 2 Byte | IO-Link?, process data content IN | 14 bit PDV (pressure measurement) 2 bit BDC (pressure monitoring) |
IO-Link?, minimum cycle time | 3 ms | IO-Link?, data memory required | 500byte |
DC operating voltage range | 20V 30V | Reverse polarity protection | for all electrical connections |
Electrical connection 1, connection type | Plug | Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, type of mounting | Compatible with latching lock Compatible with screw lock rotatable |
Electrical connection for input 1, connection pattern | 00995386 | Type of mounting | With wall/surface bracket |
Mounting position | Any | Pneumatic connection | G1/8 |
Product weight | 70g | Materials in contact with the media | FPM PA-reinforced High-alloy stainless steel |
Display type | Illuminated LCD LED | Displayable unit(s) | MPa bar inH2O inHg kPa kgf/cm2 mmHg psi |
Setting options | IO-Link? Teach-in Via display and pushbuttons | Protection against tampering | IO-Link? PIN code |
Setting range threshold value | 0% 100% | Setting range hysteresis | 0% 90% |
Degree of protection | IP65 IP67 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Manufacturer ID | 607216 |
Specifications may be subject to change without notice
