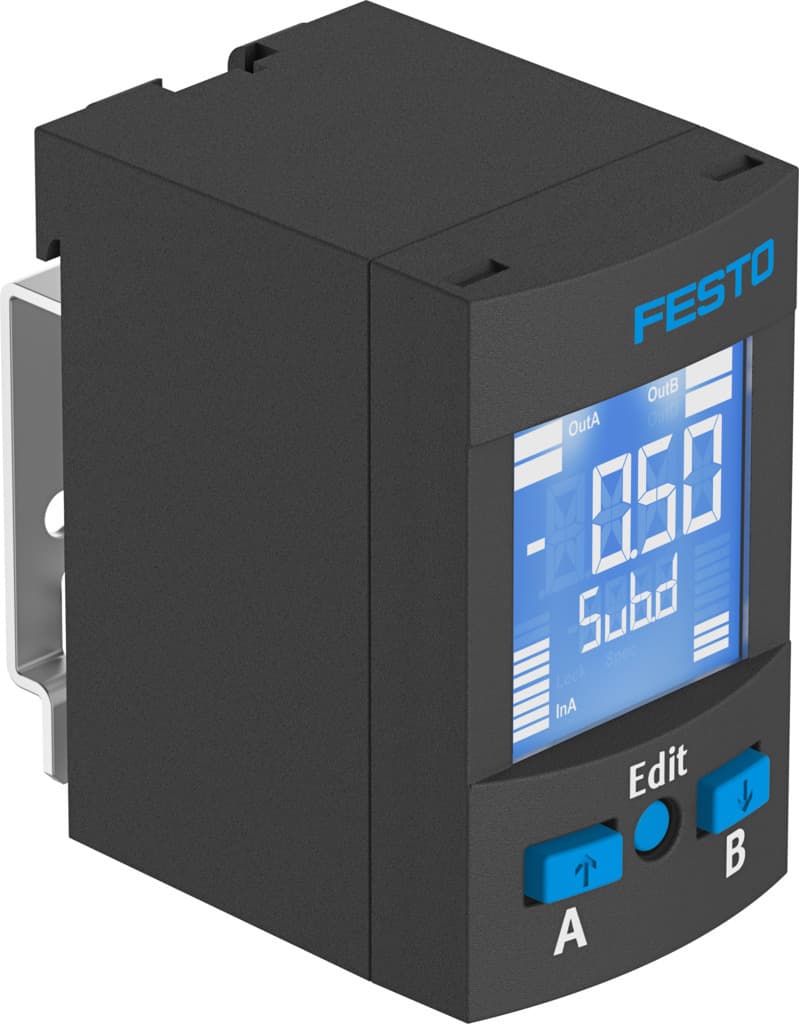

- 1The Festo SPAU-P12R-H-G18FD-L-PNLK-PNVBA-M12U is a high-accuracy pressure sensor designed for monitoring compressed air and non-corrosive gases. It features an illuminated LCD display and is certified for RCM compliance, UL listing, and CE marking.
- 2This pressure sensor uses a piezoresistive measurement method, offering a pressure measuring range from 0 to 1.2 MPa and an overload pressure of up to 15 bar. It is suitable for operating temperatures between 0°C and 50°C.
- 3The SPAU-P12R-H-G18FD-L-PNLK-PNVBA-M12U supports IO-Link protocol, enabling easy communication with sensors and actuators. It also features 2 x PNP or 2 x NPN switchable outputs and a maximum output current of 100 mA.
- 4This product is designed with reliability in mind, featuring a short-circuit protection mechanism and a robust construction that ensures consistent performance. It is also compliant with EU EMC and RoHS directives.
- 5The Festo SPAU-P12R-H-G18FD-L-PNLK-PNVBA-M12U is part of Festo's comprehensive range of pneumatic and electrical components, making it an ideal choice for industrial automation applications where precision and reliability are crucial.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Symbol | 00995410 | Certification | RCM compliance mark c UL us - Listed (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
KC characters | KC EMC | Note on materials | RoHS-compliant |
Measured variable | Relative pressure | Method of measurement | Piezoresistive pressure sensor |
Pressure measuring range initial value | 0psi | Pressure measuring range end value | 174psi |
Overload pressure | 217.5psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
Information on operating and pilot media | Operation with oil lubrication possible | Temperature of medium | 0°C 50°C |
Ambient temperature | 0°C 50°C | ADC resolution | 12bit |
Accuracy in ± % FS | 1.5%FS | Repetition accuracy in ± %FS | 0.3%FS |
Temperature co-efficient in ± %FS/K | 0.05%FS/K | Switching output | 2 x PNP or 2 x NPN switchable 2xPNP |
Switching function | Freely programmable | Switching element function | N/C contact/N/O contact switchable |
Max. output current | 100mA | Analog output | 0 - 10 V 4 - 20 mA 1 - 5 V |
Rise time | 3ms | Max. load resistance of current output | 500Ohm |
Min. load resistance of voltage output | 10kOhm | Short-circuit protection | yes |
Protocol | IO-Link? | IO-Link?, protocol version | Device V 1.1 |
IO-Link?, profile | Smart sensor profile | IO-Link?, function classes | Binary data channel (BDC) Process data variable (PDV) Identification Diagnostics Teach channel |
IO-Link?, communication mode | COM2 (38,4 kBd) | IO-Link?, SIO mode support | Yes |
IO-Link?, port class | A | IO-Link?, process data width OUT | 0 Byte |
IO-Link?, process data width IN | 2 Byte | IO-Link?, process data content IN | 14 bit PDV (pressure measurement) 2 bit BDC (pressure monitoring) |
IO-Link?, minimum cycle time | 3 ms | IO-Link?, data memory required | 500byte |
DC operating voltage range | 20V 30V | Reverse polarity protection | for all electrical connections |
Electrical connection 1, connection type | Plug | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, type of mounting | Compatible with latching lock Compatible with screw lock rotatable |
Electrical connection for input 1, connection pattern | 00991171 | Type of mounting | With thread |
Mounting position | Any | Product weight | 70g |
Materials in contact with the media | FPM PA-reinforced High-alloy stainless steel | Display type | Illuminated LCD LED |
Displayable unit(s) | MPa bar inH2O inHg kPa kgf/cm2 mmHg psi | Setting options | IO-Link? Teach-in Via display and pushbuttons |
Protection against tampering | IO-Link? PIN code | Setting range threshold value | 0% 100% |
Setting range hysteresis | 0% 90% | Degree of protection | IP65 IP67 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Manufacturer ID | 8184451 |
