Product Model

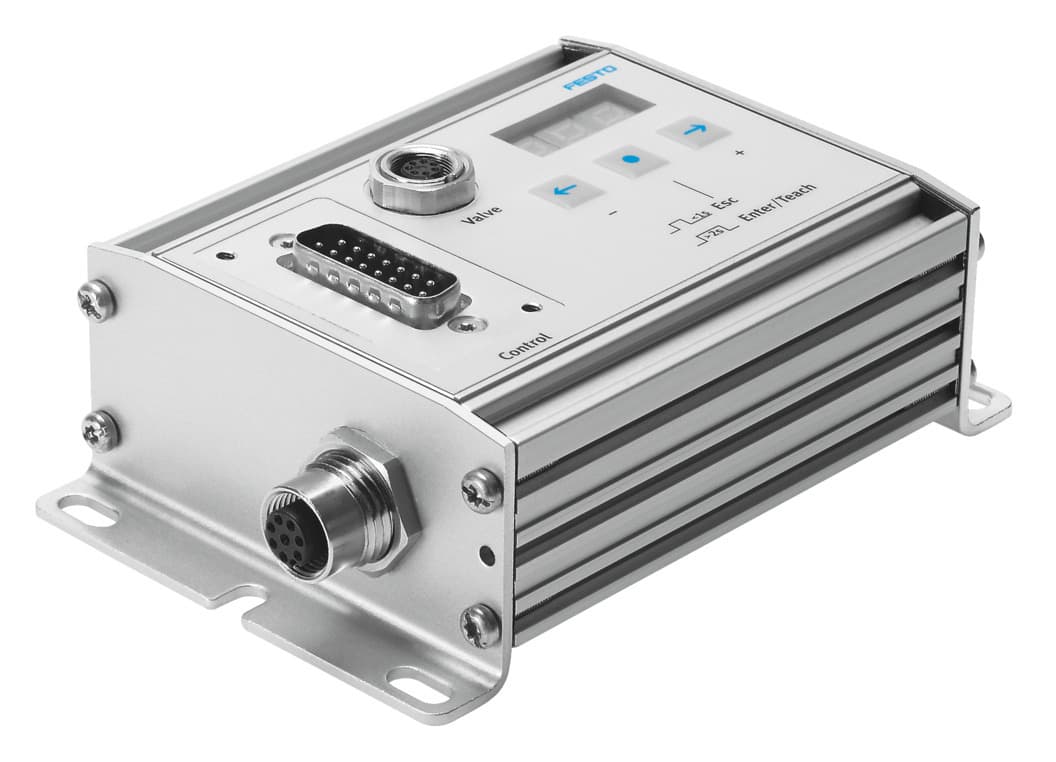

spc11-inc
Selling Points
- 1The SPC11-INC end position controller enables fast travel between two fixed stops with up to two freely selectable intermediate positions, ensuring high accuracy and efficiency in your applications.
- 2By using electronic end-position cushioning, the SPC11-INC significantly reduces system vibration, leading to smoother operations and extended component lifespan.
- 3The SPC11-INC features a simple and problem-free commissioning process, requiring no specialized technicians. This makes it easy to integrate into your existing systems.
- 4The controller maintains optimum operating behavior even with weight/load fluctuations of up to 30% of the total moving mass, ensuring consistent performance under varying conditions.
- 5The SPC11-INC is less expensive than electromechanical drives, offering a cost-effective solution for your positioning needs without compromising on performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Data backup | Flash memory | Control signals | Remote/teach input/left/right Input, position 1/2/3/4 Error-Ready output Output, position 1/2/3/4 |
Display | 3-digit Red color Seven-segment display | Control elements | 3 pushbuttons Touch sensitive keyboard |
Fuse protection for outputs | Electronic Max. tripping current 500 mA Via sum of all outputs | Number of digital outputs | 5 |
Number of digital inputs | 8 | Outputs type | as per IEC 61131-2 Positive logic (PNP) No galvanic isolation |
Design of inputs | as per IEC 61131-2 Positive logic (PNP) No galvanic isolation | Debounce time at inputs | 20ms |
Max. current consumption with proportional valve | 1.1A | Max. current consumption without proportional valve | 80mA |
Nominal operating voltage DC | 24V | Input current consumption | 4mA |
Current rating per output | 100mA | Permissible voltage fluctuations | +/- 25 % |
Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Continuous shock resistance to DIN/IEC 68 Part 2-82 | Tested as per severity level 2 |
LABS (PWIS) conformity | VDMA24364-B2-L | Relative air humidity | 0 - 95 % Non-condensing |
Degree of protection | IP65 as per IEC 60529 | Vibration resistance to DIN/IEC 68 Part 2-6 | Tested as per severity level 1 |
Ambient temperature | 0°C 50°C | Product weight | 400g |
Elec. connection of operating voltage, inputs and outputs | 15-pin SUB-D Plug | Electrical connection, proportional valve | Socket M9 7-pin |
Linear potentiometer electrical connection | 8-pin Socket M12 | Manufacturer ID | 537321 |
Specifications may be subject to change without notice
