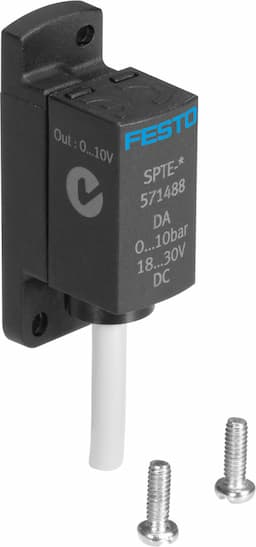

Festo SPTE-P10R-F-V-2.5K Pressure Transmitter - High Accuracy and Reliability

Selling Points

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Symbol	00992257	Certification	RCM compliance mark c UL us - Recognized (OL)
CE marking (see declaration of conformity)	As per EU EMC directive As per EU RoHS directive	UKCA marking (see declaration of conformity)	To UK instructions for EMC To UK RoHS instructions
Certificate issuing authority	UL E322346	Note on materials	RoHS-compliant
Measured variable	Relative pressure	Method of measurement	Piezoresistive pressure sensor
Pressure measuring range initial value	0psi	Pressure measuring range end value	145psi
Overload pressure	217.5psi	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible	Temperature of medium	0°C 50°C
Ambient temperature	0°C 50°C	Accuracy in ± % FS	3%FS
Repetition accuracy in ± %FS	0.3%FS	Temperature co-efficient in ± %FS/K	0.05%FS/K
Analog output	0 - 10 V	Rise time	1ms
Min. load resistance of voltage output	15kOhm	Short-circuit protection	For all electrical connections
DC operating voltage range	18V 30V	Reverse polarity protection	for all electrical connections
Electrical connection	3-wire Cable Open end	Cable length	2.5m
Type of mounting	With through-hole and screw	Mounting position	Any
Pneumatic connection	Flange	Product weight	35g
Housing material	PA-reinforced	Sealing ring material	FPM
Degree of protection	IP40	Corrosion resistance class (CRC)	2 - Moderate corrosion stress
LABS (PWIS) conformity	VDMA24364-B2-L	Cleanroom class	Class 4 according to ISO 14644-1
Manufacturer ID	571488

Specifications may be subject to change without notice
