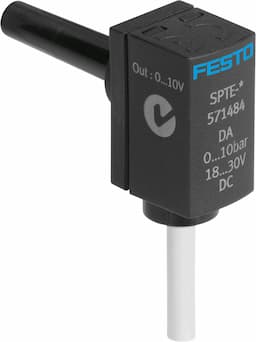

Product Model
spte-v1r-s6-b-2.5k
Selling Points
- 1Designed with a B10 service-life value of 30 million cycles and a mean time to failure (MTTF) of 973 years.
- 2Meets EU EMC and RoHS directives, ensuring compliance with international standards.
- 3Operates between 0°C and +50°C, suitable for diverse industrial environments.
- 4Quick switching-point adjustment at the touch of a button simplifies setup and operation.
- 5Includes an analogue output and LED switching status indicator for real-time monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Symbol | 00992257 | Certification | RCM compliance mark c UL us - Recognized (OL) |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive | UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
Certificate issuing authority | UL E322346 | Note on materials | RoHS-compliant |
Measured variable | Relative pressure | Method of measurement | Piezoresistive pressure sensor |
Pressure measuring range initial value | 0psi | Pressure measuring range end value | -14.5psi |
Overload pressure | 72.5psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible | Temperature of medium | 0°C 50°C |
Ambient temperature | 0°C 50°C | Accuracy in ± % FS | 3%FS |
Repetition accuracy in ± %FS | 0.3%FS | Temperature co-efficient in ± %FS/K | 0.05%FS/K |
Analog output | 1 - 5 V | Rise time | 1ms |
Min. load resistance of voltage output | 15kOhm | Short-circuit protection | For all electrical connections |
DC operating voltage range | 10V 30V | Reverse polarity protection | for all electrical connections |

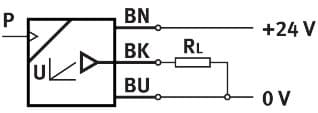

Electrical connection | 3-wire Cable Open end | Cable length | 2.5m |
Type of mounting | Plug-in | Mounting position | Any |
Pneumatic connection | Push-in sleeve QS-6 | Product weight | 35g |
Housing material | PA-reinforced | Sealing ring material | FPM |
Degree of protection | IP40 | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
Cleanroom class | Class 4 according to ISO 14644-1 | Manufacturer ID | 571470 |
Specifications may be subject to change without notice
