Product Model

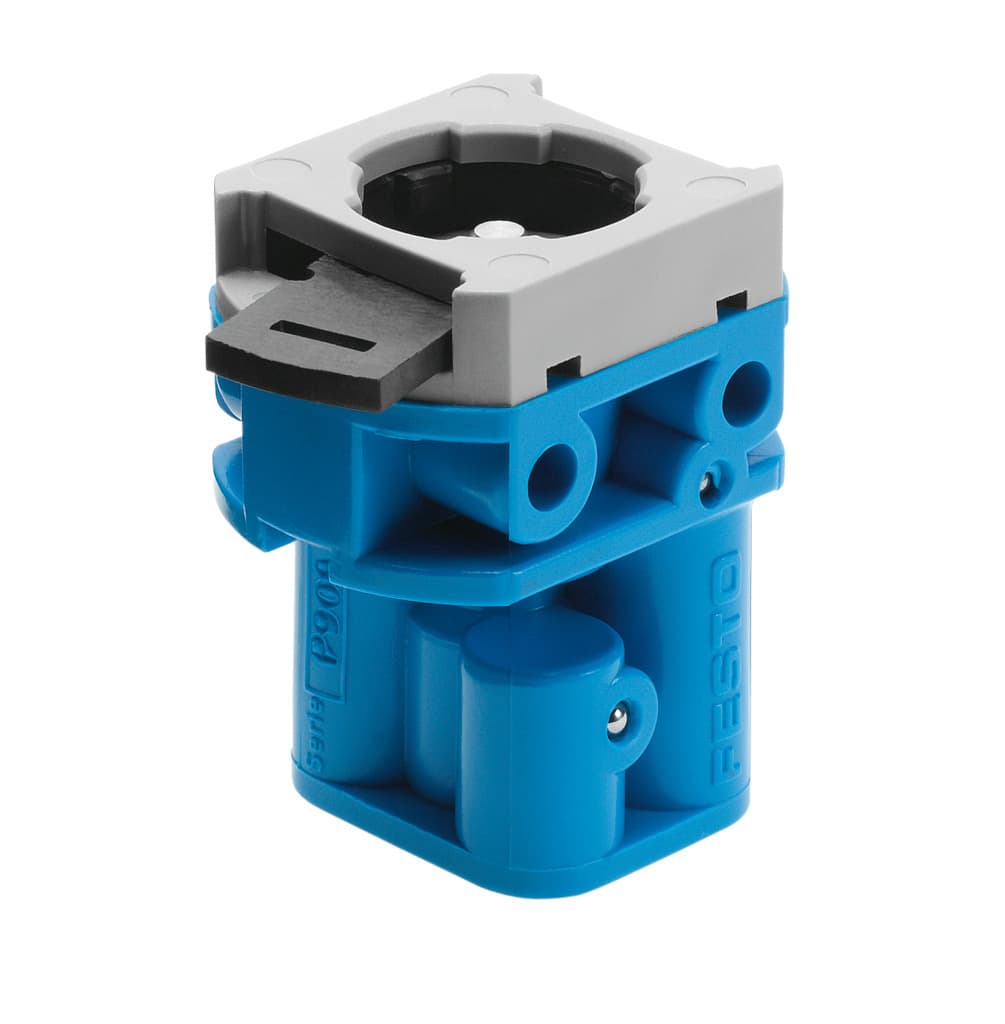

sv-3-m5
Selling Points
- 1High flow rate of 65 l/min for efficient operation.
- 2Durable brass and polymer housing for long-lasting performance.
- 3Compact design with a nominal width of 2 mm.
- 4Monostable 3/2-way valve function for precise control.
- 5Actuating force of 12 N for easy manual operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 3/2, closed, monostable | Actuation type | Manual |
Standard nominal flow rate | 65l/min | Operating pressure | -0.95bar 8bar |
Structural design | Poppet valve with return spring | Reset method | Mechanical spring |
Nominal width | 2mm | Sealing principle | Soft |
Mounting position | Any | Type of control | Direct |
Flow direction | Non-reversible | Symbol | 00991292 |
Lap | Overlap | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 60°C | Actuating force | 12N |
Product weight | 40g | Type of mounting | Front panel mounting With through-hole |
Pneumatic connection 1 | M5 | Seals material | NBR |
Housing material | Polymer Brass | Manufacturer ID | 6817 |
Specifications may be subject to change without notice
