Product Model
sv-5-m5-b
Selling Points

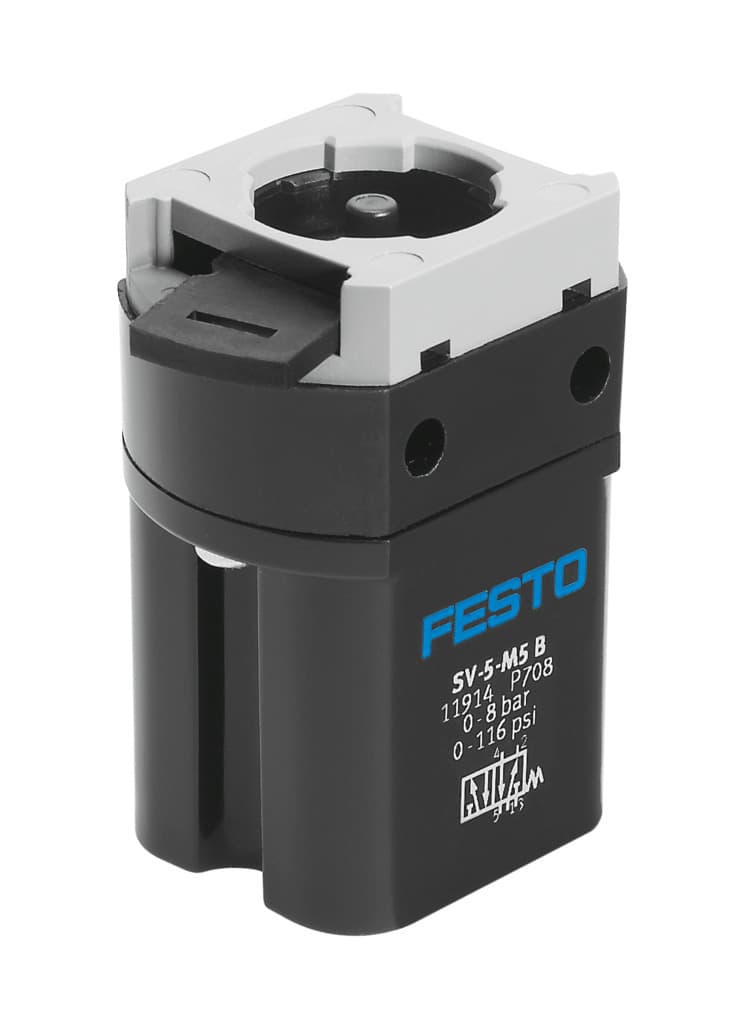

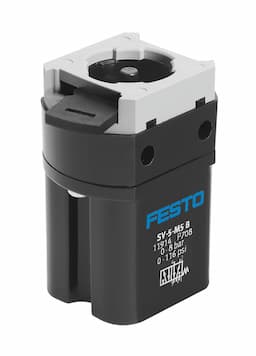

- 1The Festo SV-5-M5-B is a 5/2-way, monostable pneumatic valve designed for manual actuation, offering a standard nominal flow rate of 95 l/min and operating pressure up to 8 bar.
- 2This valve features a poppet design with a mechanical spring return, ensuring reliable operation and easy reset. It is suitable for use in zones 1, 2, 21, and 22 (ATEX).
- 3The SV-5-M5-B is constructed with a polymer or brass housing and uses NBR seals for soft sealing, ensuring durability and resistance to various operating conditions.
- 4With an actuating force of 17 N and a product weight of 53 g, this valve is lightweight and easy to handle, making it ideal for front panel mounting with an M5 threaded connection.
- 5The valve operates within an ambient temperature range of -10 °C to 60 °C, making it suitable for a variety of industrial applications. It also conforms to LABS (PWIS) and VDMA24364-B1/B2-L standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 5/2, monostable | Actuation type | Manual |
Standard nominal flow rate | 95l/min | Operating pressure | 0bar 8bar |
Structural design | Poppet valve with return spring | Reset method | Mechanical spring |
Nominal width | 2.3mm | Sealing principle | Soft |
Mounting position | Any | Type of control | Direct |
Symbol | 00991339 | Lap | Overlap |
Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 60°C |
Actuating force | 17N | Product weight | 53g |
Type of mounting | Front panel mounting With through-hole | Pneumatic connection 1 | M5 |
Seals material | NBR | Housing material | Polymer Brass |
Manufacturer ID | 11914 |
Specifications may be subject to change without notice
