Product Model
sve4-hs-r-hm8-2n-m8
Selling Points
- 1Highly Versatile Signal Converter: The Festo SVE4-HS-R-HM8-2N-M8 is specifically designed to work with SMH-S1-HG position sensors, offering a versatile solution for various industrial automation applications.
- 2Reliable 2x NPN Switching Outputs: Equipped with two NPN switching outputs, this signal converter ensures reliable and efficient signal processing, making it a crucial component in complex automation systems.
- 3Compact M8 4-Pin Connectors: Featuring M8 4-pin connectors, the SVE4-HS-R-HM8-2N-M8 provides a compact and easy-to-use connection solution, reducing wiring complexity and enhancing overall system integration.
- 4Adaptable and Programmable: The signal converter offers a freely programmable switching function, allowing for customization to meet specific application requirements. This adaptability ensures optimal performance in diverse industrial settings.
- 5Durable and IP65 Rated: Constructed with high-quality materials, the SVE4-HS-R-HM8-2N-M8 is IP65 rated, providing protection against dust and water, ensuring long-lasting performance in harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Symbol | 00991965 | Certification | RCM compliance mark c UL us - Listed (OL) |
UL-ambient temperature | -20°C 60°C | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Note on materials | RoHS-compliant |
Signal range | Adapted for position sensors SMH-S1-HG | Ambient temperature | -20°C 70°C |

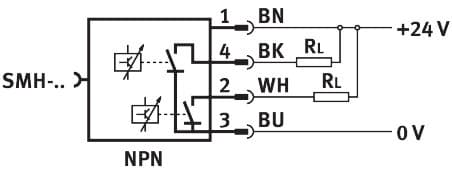

Switching output | 2xNPN | Switching function | Freely programmable |
Switching element function | Switchable | Short-circuit protection | Pulsed |
Overload protection | Available | DC operating voltage range | 10V 30V |
Electrical connection 1, connection type | Socket | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, type of mounting | Screw-type lock |
Electrical connection for input 1, connection pattern | 00991872 | Electrical connection 2, connection type | Plug |
Electrical connection 2, connection technology | M8x1 A-coded as per EN 61076-2-104 | Electrical connection 2, number of pins/wires | 4 |
Electrical connection 2, type of mounting | Screw-type lock | Electrical connection 2, connection pattern | 00991171 |
Product weight | 19g | Housing material | ABS |
Setting options | Teach-in | Degree of protection | IP65 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Manufacturer ID | 544219 |
Specifications may be subject to change without notice
