Product Model
sve4-is-r-hm8-2n-m8
Selling Points
- 1The SVE4-IS-R-HM8-2N-M8 is specifically designed to work with position sensors like SMH-S1-HG, enhancing its application in automation systems.
- 2The signal converter offers freely programmable switching functions, allowing for customizable output configurations to meet specific automation needs.
- 3Equipped with IP65 protection, the SVE4-IS-R-HM8-2N-M8 ensures reliable operation in harsh industrial environments, providing moderate corrosion resistance.
- 4Compliant with C UL US listed and CE marked standards, this signal converter meets stringent safety and regulatory requirements for global use.
- 5Available for direct mounting on DIN H-rail or with an adapter plate, the SVE4-IS-R-HM8-2N-M8 offers flexibility in installation, making it suitable for various automation setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Symbol | 00991963 | Certification | RCM compliance mark c UL us - Listed (OL) |
UL-ambient temperature | -20°C 60°C | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Note on materials | RoHS-compliant |
Signal range | 0 - 20 mA +/-0.6 mA | Ambient temperature | -20°C 70°C |

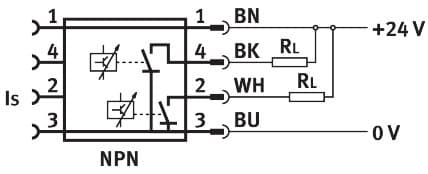

Switching output | 2xNPN | Switching function | Freely programmable |
Switching element function | Switchable | Short-circuit protection | Pulsed |
Overload protection | Available | DC operating voltage range | 10V 30V |
Electrical connection 1, connection type | Socket | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, type of mounting | Screw-type lock |
Electrical connection for input 1, connection pattern | 00991872 | Electrical connection 2, connection type | Plug |
Electrical connection 2, connection technology | M8x1 A-coded as per EN 61076-2-104 | Electrical connection 2, number of pins/wires | 4 |
Electrical connection 2, type of mounting | Screw-type lock | Electrical connection 2, connection pattern | 00991171 |
Product weight | 19g | Housing material | ABS |
Setting options | Teach-in | Degree of protection | IP65 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Manufacturer ID | 544221 |
Specifications may be subject to change without notice
