Product Model
sve4-us-r-hm8-2n-m8
Selling Points
- 1The Festo SVE4-US-R-HM8-2N-M8 signal converter is designed to enhance automation processes with its advanced signal processing capabilities, ensuring precise and reliable data transmission.
- 2This signal converter supports IO-Link technology, facilitating easy communication with sensors and actuators, and simplifying system integration.
- 3With its robust design and high-quality components, the SVE4-US-R-HM8-2N-M8 offers reliable performance in demanding industrial environments.
- 4The product is part of Festo's comprehensive range of automation solutions, ensuring compatibility with a wide variety of industrial applications.
- 5The SVE4-US-R-HM8-2N-M8 is engineered to meet the highest standards of quality, making it a trusted choice for industries seeking efficient and reliable automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Symbol | 00991961 | Certification | RCM compliance mark c UL us - Listed (OL) |
UL-ambient temperature | -20°C 60°C | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Note on materials | RoHS-compliant |
Signal range | 0 - 10 V +/-0.3 V | Ambient temperature | -20°C 70°C |
Switching output | 2xNPN | Switching function | Freely programmable |
Switching element function | Switchable | Short-circuit protection | Pulsed |
Overload protection | Available | DC operating voltage range | 10V 30V |
Electrical connection 1, connection type | Socket | Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
Electrical connection 1, number of pins/wires | 4 | Electrical connection 1, type of mounting | Screw-type lock |

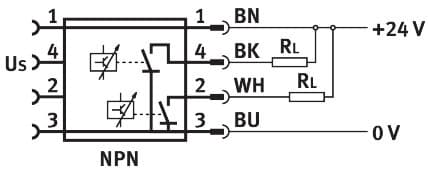

Electrical connection for input 1, connection pattern | 00991872 | Electrical connection 2, connection type | Plug |
Electrical connection 2, connection technology | M8x1 A-coded as per EN 61076-2-104 | Electrical connection 2, number of pins/wires | 4 |
Electrical connection 2, type of mounting | Screw-type lock | Electrical connection 2, connection pattern | 00991171 |
Product weight | 19g | Housing material | ABS |
Setting options | Teach-in | Degree of protection | IP65 |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Manufacturer ID | 544220 |
Specifications may be subject to change without notice
