Product Model
svk-3-pk-3
Selling Points

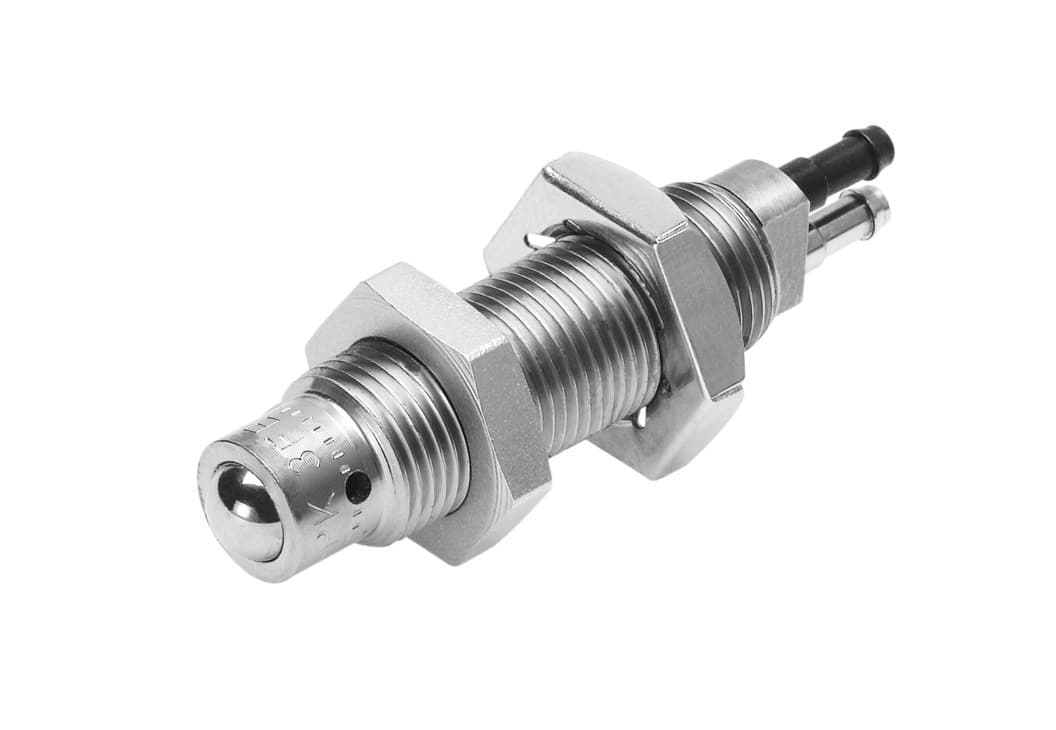

- 1The Festo SVK-3-PK-3 limit valve features a 3/2-way, closed, monostable valve function, ensuring precise control over pneumatic systems. Its mechanical type of actuation provides reliability and durability.
- 2With a standard nominal flow rate of 50L/min, this valve is suitable for a wide range of compressed air applications. It operates within a pressure range of -0.9 to 8 bar, making it versatile for various industrial needs.
- 3The valve is designed with a spherical seat and utilizes a mechanical spring for reset, ensuring consistent performance and easy maintenance. Its soft sealing principle ensures reliable operation over time.
- 4The SVK-3-PK-3 limit valve offers direct piloting and non-reversible flow direction, providing straightforward integration into pneumatic systems. It supports lubricated operation, which is required for continued functionality.
- 5This Festo product is designed to operate within a temperature range of -10°C to 80°C, making it suitable for various ambient conditions. It also conforms to VDMA24364 zone III lABS (PWIS) standards, ensuring compliance with industry regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 3/2, closed, monostable | Actuation type | Mechanical |
Standard nominal flow rate | 50l/min | Pneumatic working port | PK-3 |
Operating pressure | -0.9bar 8bar | Structural design | Ball seat |
Reset method | Mechanical spring | Nominal width | 1.5mm |
Sealing principle | Soft | Mounting position | Any |
Type of control | Direct | Flow direction | Non-reversible |
Symbol | 00991097 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | LABS (PWIS) conformity | VDMA24364 zone III |
Temperature of medium | -10°C 80°C | Ambient temperature | -10°C 80°C |
Type of mounting | With through-hole | Pneumatic connection 1 | PK-3 |
Pneumatic connection 2 | PK-3 | Pneumatic connection 3 | Not ducted |
Manufacturer ID | 12146 |
Specifications may be subject to change without notice
