Product Model
sv/o-3-pk-3x2
Selling Points

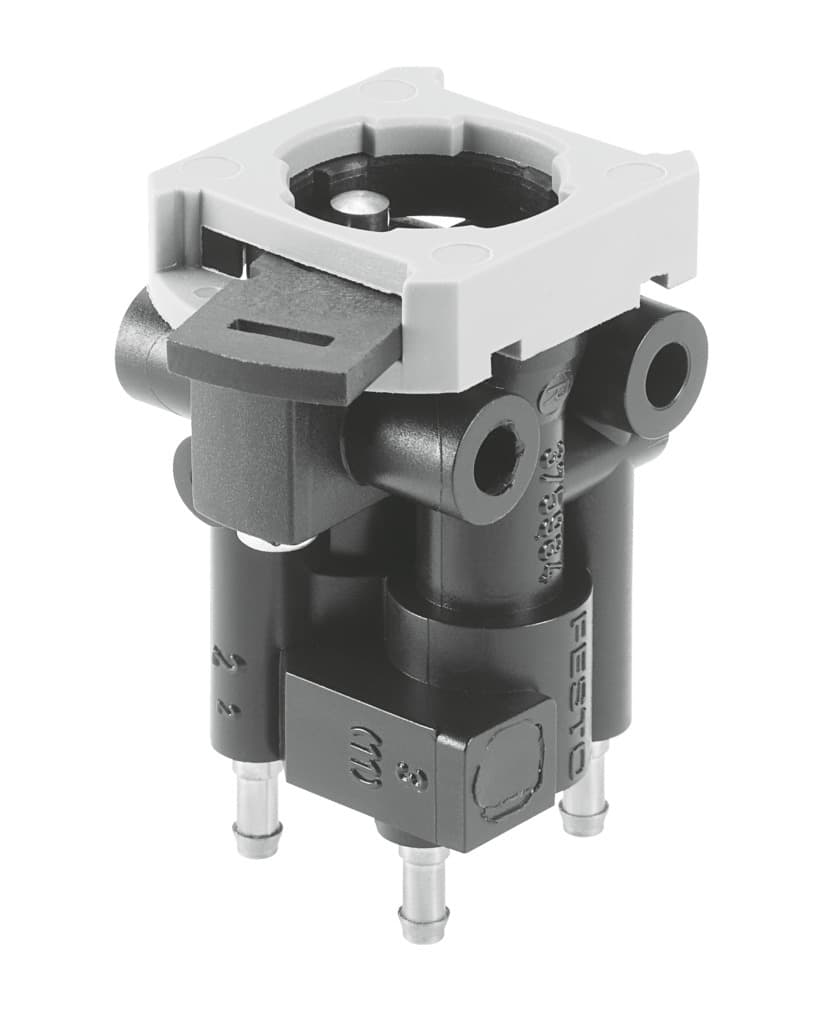

- 1The Festo SV/O-3-PK-3X2 front panel valve offers a 2x3/2-way monostable closed function, ensuring precise control over pneumatic systems.
- 2With a standard nominal flow rate of 70L/min, this valve is designed to handle moderate to high airflow requirements in various industrial applications.
- 3The valve features a mechanical spring reset method, providing reliable and consistent operation even under varying conditions.
- 4The Festo SV/O-3-PK-3X2 is constructed with a soft sealing principle using NBR material, ensuring durability and minimizing wear over time.
- 5This front panel valve is compatible with compressed air operating medium as per ISO 8573-1:2010, making it suitable for a wide range of pneumatic systems and applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 2x3/2, closed, monostable | Standard nominal flow rate | 70l/min |
Pneumatic working port | PK-3 | Operating pressure | 0bar 8bar |
Reset method | Mechanical spring | Nominal width | 2.5mm |
Sealing principle | Soft | Mounting position | Any |
Type of control | Direct | Flow direction | Non-reversible |
Symbol | 00997337 | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 60°C | Product weight | 34g |
Type of mounting | With through-hole | Pneumatic connection 1 | PK-3 |
Pneumatic connection 2 | PK-3 | Seals material | NBR |
Manufacturer ID | 184135 |
Specifications may be subject to change without notice
