Product Model
svos-3-1/8
Selling Points

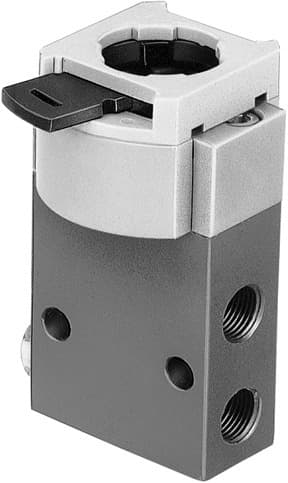

- 1The Festo SVOS-3-1/8 front panel valve features a 3/2 open, single solenoid valve function, ensuring precise control over pneumatic systems.
- 2With a mechanical type of actuation, this valve offers reliable operation and easy maintenance, making it suitable for a wide range of industrial applications.
- 3The valve has a standard nominal flow rate of 120L/min, allowing for efficient airflow management in various pneumatic systems.
- 4The SVOS-3-1/8 operates at pressures up to 8BAR, ensuring it can handle demanding industrial conditions with ease.
- 5The valve is designed with a piston seat and mechanical spring reset, providing a soft sealing principle that enhances durability and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 3/2, open, monostable | Actuation type | Mechanical |
Standard nominal flow rate | 120l/min | Pneumatic working port | G1/8 |
Operating pressure | 3.5bar 8bar | Structural design | Piston seat |
Reset method | Mechanical spring | Sealing principle | Soft |
Mounting position | Any | Type of control | Direct |
Flow direction | Non-reversible | Symbol | 00991107 |
Lap | Overlap | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Ambient temperature | -10°C 60°C | Actuating force | 8N |
Type of mounting | With through-hole | Pneumatic connection 1 | G1/8 |
Pneumatic connection 2 | G1/8 | Pneumatic connection 3 | G1/8 |
Cover material | POM | Seals material | NBR TPE-U(PU) |
Housing material | Aluminum | Manufacturer ID | 10191 |
Specifications may be subject to change without notice
