Product Model
svs-4-1/8
Selling Points

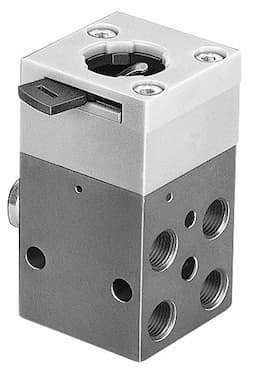

- 1The Festo SVS-4-1/8 is a 4/2 monostable panel mount valve designed for precise control in pneumatic systems, ensuring reliable operation and high flow rates.
- 2With a standard nominal flow rate of 120 l/min and operating pressure ranging from 3.5 to 8 bar, this valve is suitable for a wide range of industrial applications.
- 3The valve features a G1/8 pneumatic working port, making it compact and easy to integrate into various system configurations.
- 4The Festo SVS-4-1/8 is built with high-quality materials, ensuring durability and long-lasting performance in demanding industrial environments.
- 5This valve is available from authorized distributors and online retailers, offering a convenient and secure purchasing experience for your pneumatic needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Valve function | 4/2, monostable | Actuation type | Mechanical |
Standard nominal flow rate | 120l/min | Pneumatic working port | G1/8 |
Operating pressure | 3.5bar 8bar | Structural design | Piston seat |
Reset method | Mechanical spring | Sealing principle | Soft |
Mounting position | Any | Type of control | Direct |
Flow direction | Non-reversible | Symbol | 00991108 |
Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Ambient temperature | -10°C 60°C |
Actuating force | 8N | Type of mounting | With through-hole |
Pneumatic connection 1 | G1/8 | Pneumatic connection 2 | G1/8 |
Pneumatic connection 3 | G1/8 | Pneumatic connection 4 | G1/8 |
Cover material | POM | Seals material | NBR TPE-U(PU) |
Housing material | Aluminum | Manufacturer ID | 10192 |
Specifications may be subject to change without notice
