Product Model

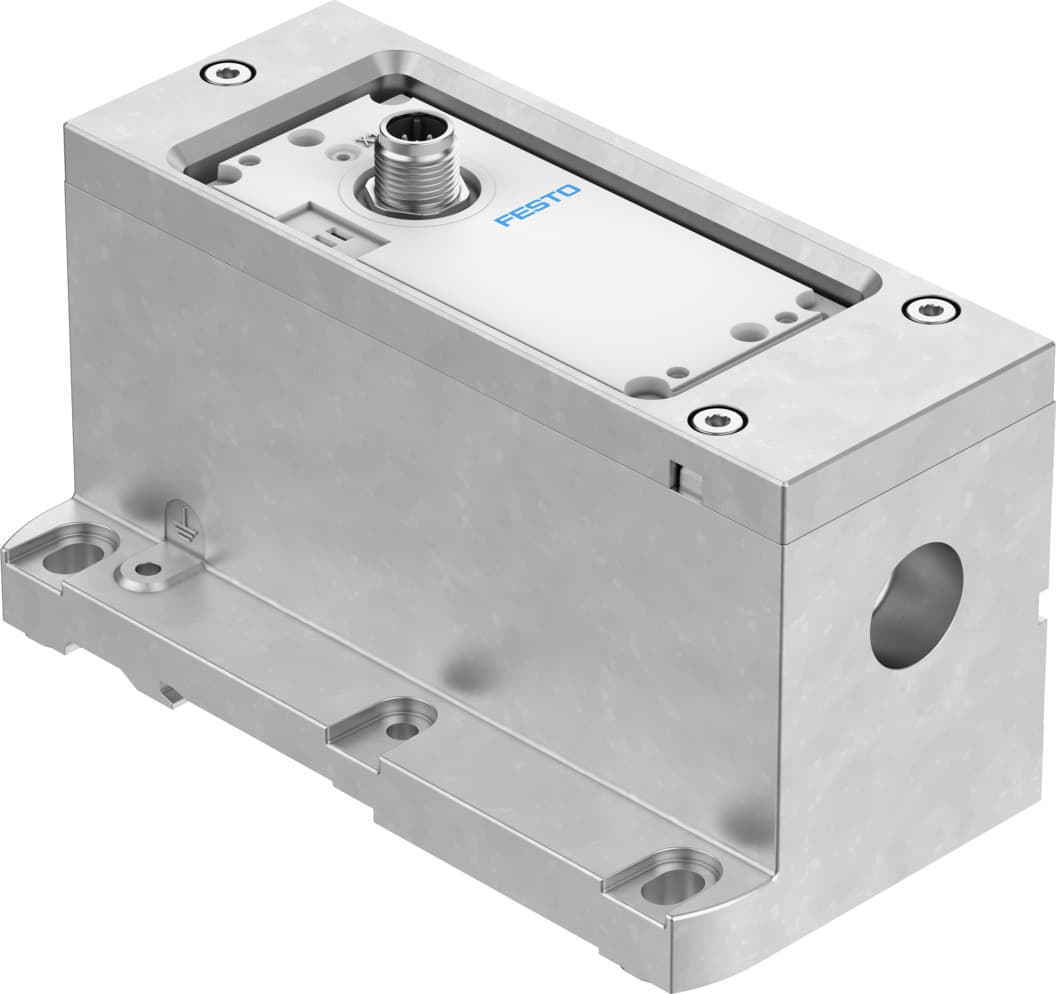

vaba-s6-1-pt
Selling Points
- 1The Festo VABA-S6-1-PT is designed with reverse polarity protection, ensuring safe operation in various industrial environments. It also features separate protection for the power system (PS) and power load (PL), enhancing reliability and safety.
- 2This electrical interface supports up to 16 valve positions and 32 solenoid coils, making it versatile for a wide range of automation applications. Its high baud rate of 38.4 kbps enables efficient communication.
- 3The VABA-S6-1-PT operates at a nominal voltage of 24 V DC, with an intrinsic current consumption of typically 30 mA for both electronics/sensors and load. This efficiency reduces power consumption and heat generation.
- 4The device is IO-Link compliant, supporting a protocol version of V 1.1 and communication mode COM2 (38.4 kbps). It has a minimum cycle time of 3.2 ms and supports process data width of up to 4 bytes, ensuring fast and reliable data transfer.
- 5The Festo VABA-S6-1-PT is built with corrosion-resistant materials, classified as CRC 2 - Moderate corrosion stress, and conforms to LABS (PWIS) standards VDMA24364-B2-L. It weighs 690 grams and has a maximum cable length of 20 meters, making it suitable for various industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Reverse polarity protection | Separate for Power System (PS) and Power Load (PL) | Max. no. of valve positions | 16 |
Max. no. of solenoid coils | 32 | Baud rate | 38.4 kbps |
Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 30 mA | Intrinsic current consumption at nominal operating voltage load | Typically 30 mA |
Nominal operating voltage DC | 24V | Residual ripple | 4 Vss |
Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Product weight | 690g | IO-Link?, Connection technology | Device, 5-pin |
IO-Link?, protocol version | Device V 1.1 | IO-Link?, communication mode | COM2 (38,4 kBd) |
IO-Link?, port class | Device B | IO-Link?, number of ports | Device 1 |
IO-Link?, process data width OUT | Device 1-4 byte | IO-Link?, minimum cycle time | Device 3.2 ms |
Max. cable length | 20 m | Communication types | IO-Link? |
Nominal conductor cross section | 1mm2 | Note on materials | RoHS-compliant |
Cover material | Die-cast aluminum | Manufacturer ID | 8152353 |
Specifications may be subject to change without notice
