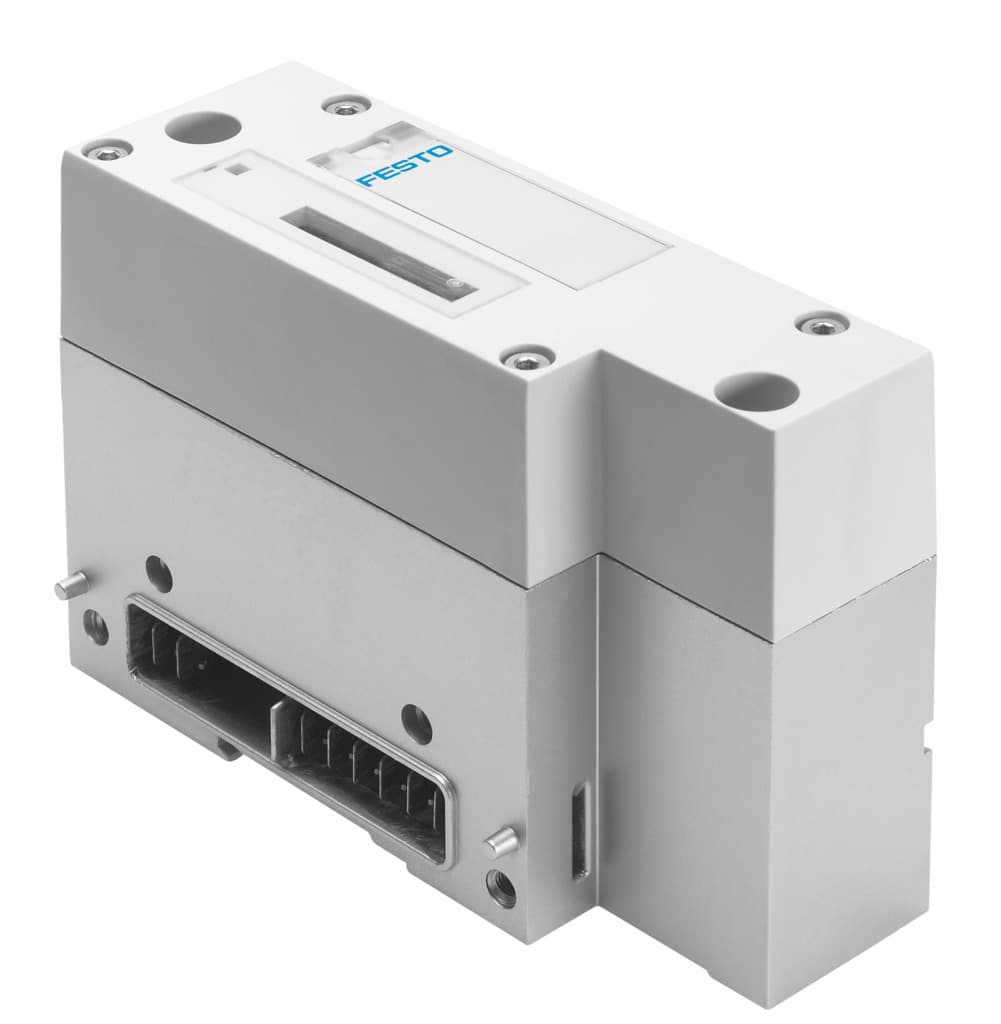

Festo VABA-S6-1-X2-D Pneumatic Interface

Selling Points

1Advanced Diagnostics: Includes undervoltage detection and group diagnostics for efficient troubleshooting.
2High Reliability: Mean time to failure (MTTF) of 78.62 years, ensuring long-lasting performance.
3Versatile Valve Control: Supports up to 16 bistable or 32 monostable valve positions.
4LED Display & Monitoring: Real-time LED display for channel status and module monitoring.
5Robust Design & Protection: IP65 degree of protection, internal electronic fuse protection, and corrosion resistance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Valve manifold interface	Type 44, VTSA	Diagnostics	Undervoltage of pneumatic valves
Max. no. of valve positions	16 for bistable pneumatic valves 32 for monostable pneumatic valves	LED indicators	1 group diagnostics Channel status on pneumatic valves
Parameterization	Fail-safe modes per channel Forcing per channel Idle mode per channel Module monitoring	Fuse protection (short circuit)	Internal electronic fuse per pneumatic valve output
DC operating voltage range	21.6V 26.4V	Intrinsic current consumption at nominal operating voltage	Typ. 15 mA (electronics operating voltage supply) Typ. 50 mA (pneumatic valve load power supply)
Max. power supply per channel	0.2?A	Max. residual current per module	4A
Nominal operating voltage DC	24V	Electrical isolation between channel and internal bus	Yes, when using an additional supply for the pneumatic valves
Corrosion resistance class (CRC)	0 - No corrosion stress	LABS (PWIS) conformity	VDMA24364-B1/B2-L
Degree of protection	IP65 NEMA 4	Ambient temperature	-5°C 50°C
Product weight	590g	Electrical actuation	Fieldbus
Electrical connection	Via CPX	Note on materials	RoHS-compliant
Cover material	PA	Housing material	Die-cast aluminum
Manufacturer ID	573613

Specifications may be subject to change without notice
