Product Model

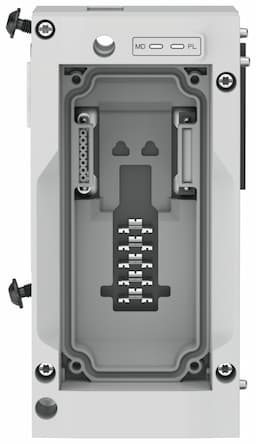

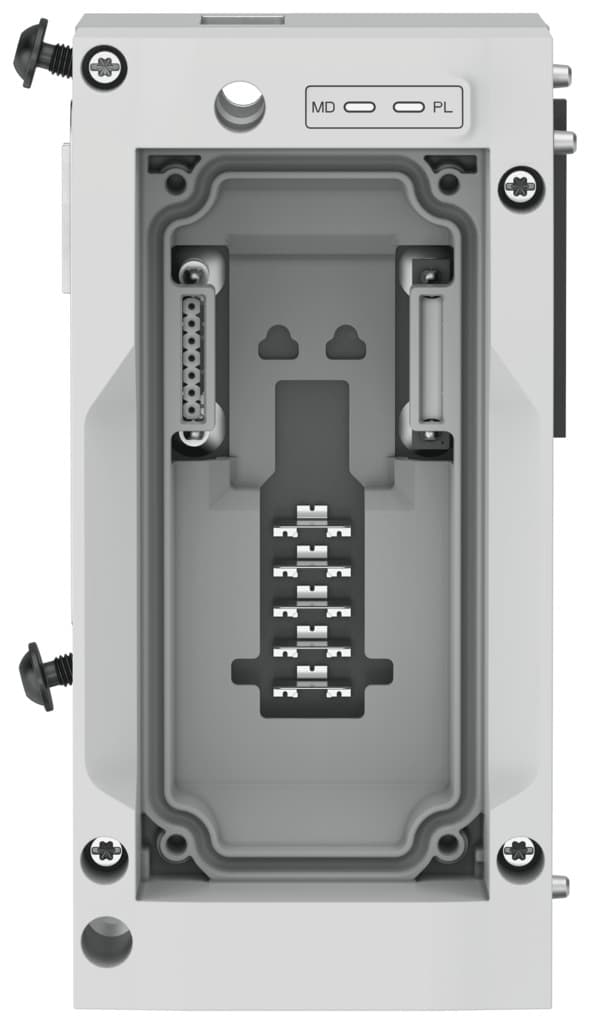

vaba-s6-1-x5
Selling Points
- 1The VABA-S6-1-X5 pneumatic interface connects seamlessly with automation systems like CPX-AP-A and valve terminals VTSA-FB or VTSA-F-FB, ensuring efficient communication and control.
- 2This interface offers robust vibration and shock resistance, meeting standards set by EN 60068, making it ideal for various industrial applications.
- 3With advanced diagnostics, including LED diagnostics and internal communication diagnostics, the VABA-S6-1-X5 provides real-time monitoring and error detection capabilities.
- 4The module supports up to 32 solenoid coils and 32 valve positions, offering high flexibility in configuring your automation system.
- 5Designed with safety in mind, the VABA-S6-1-X5 features internal electronic fuse protection per valve output and short-circuit protection, ensuring reliable operation under various conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 | Note on vibration resistance | SG2 on wall mounting |
Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 | Note on shock resistance | SG2 on wall mounting |
Valve manifold interface | Type 44, VTSA Type 45, VTSA-F | Reverse polarity protection | yes |
Diagnostics via LED | Diagnostics per module Load power supply | Diagnose per internal communication | Load switch-off Communication error Short-circuit/overload in output signal Electronics/sensors overvoltage Load overvoltage Electronics/sensors undervoltage Load undervoltage |
Max. no. of valve positions | 16 for bistable pneumatic valves 32 for monostable pneumatic valves | Max. no. of solenoid coils | 32 |
Module code (hex/dec) | 0x3044/12356d | Module parameters | Activation of diagnosis in case of overload/short circuit Condition counter limit/actual value Configuration of voltage monitoring, load supply PL Response in error state |
Internal cycle time | < 1 ms | Dimensions W x L x H | 70.5 mm x 142 mm x 102.6 mm |
Fuse protection (short circuit) | Internal electronic fuse per pneumatic valve output | Intrinsic current consumption at nominal operating voltage for electronics/sensors | typically 27 mA |
Intrinsic current consumption at nominal operating voltage load | typically 17 mA | Note regarding operating voltage | SELV/PELV fixed power supplies required Note voltage drop |
Nominal operating voltage DC for electronics/sensors | 24V | Nominal operating voltage DC load | 24V |
Power failure buffering | 10ms | Potential separation between the supply voltages electronics/sensor technology and load/valves | yes |
Contamination level | 2 | Permissible voltage fluctuations for electronics/sensors | ± 25 % |
Permissible voltage fluctuations load | ± 10% | Undervoltage load/valves (diagnostic message) | 21.6V |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
Storage temperature | -20°C 70°C | Relative air humidity | 5 - 95 % Non-condensing |
Protection class | III | Overvoltage category | II |
Ambient temperature | -20°C 50°C | Note on ambient temperature | Observe ambient temperature derating according to IEC 61131-2:2017 |
Nominal altitude of use above sea level | <= 2000 m ASL (> 79.5 kPa) | Max. installation height | 3500m |
Information on max. installation height | > 2000 m ASL (< 79.5 kPa) Observe ambient temperature derating according to IEC 61131-2:2017 | Product weight | 1245g |
Electrical actuation | Fieldbus | Communication interface, protocol | AP |
Type of mounting | with through-hole for M6 screw | Note on materials | RoHS-compliant Halogen-free Free of phosphoric acid ester |
Cover material | Zinc die-cast metal, powder-coated | Seals material | NBR PUR |
Housing material | Aluminum | Material of screws | Steel, nickel-plated |
Manufacturer ID | 8154036 |
Specifications may be subject to change without notice
