Product Model

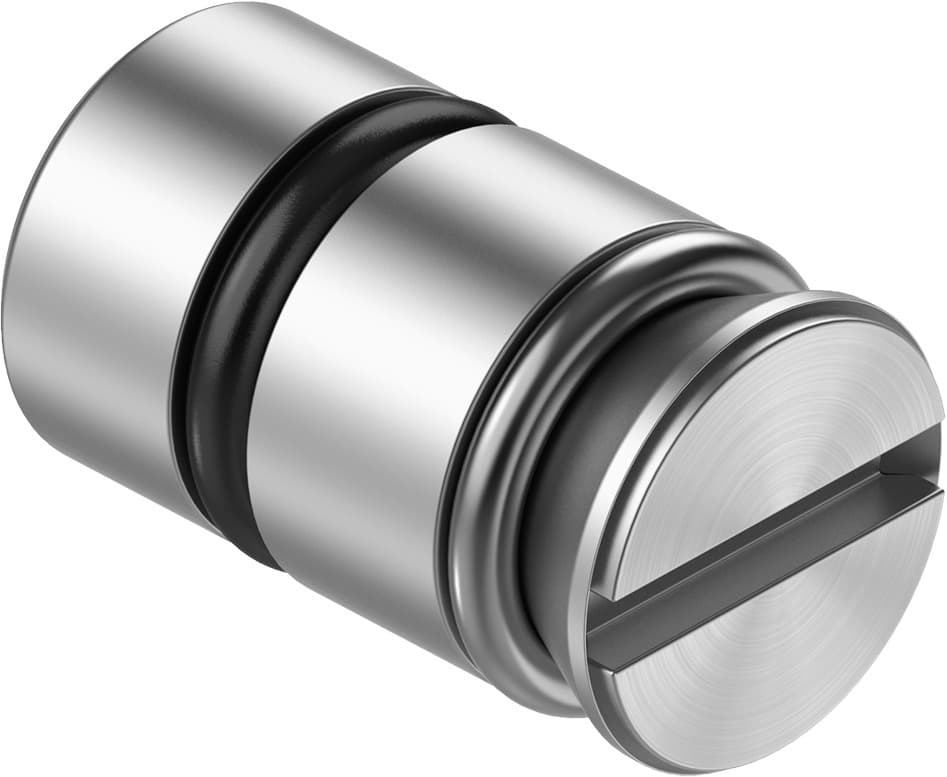

vabd-6-b-f1a
Selling Points
- 1The VABD-6-B-F1A separator features a corrosion resistance class of 0, ensuring no corrosion stress and optimal performance in various environments.
- 2This separator is classified as ISO Class 6, making it suitable for cleanroom applications where high purity is required.
- 3The product is RoHS-compliant, ensuring it meets the European Union's Restriction of Hazardous Substances directive for environmental safety.
- 4The separator uses NBR seals, steel screws with a nickel-plated finish, high-alloy stainless steel snap rings, and aluminum plugs for durability and resistance to various chemicals.
- 5The VABD-6-B-F1A conforms to LABS (PWIS) and VDMA24364 zone III standards, ensuring it meets industry-specific requirements for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Variants | Metals with copper, zinc or nickel by mass as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364 zone III | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
Cleanroom class | Class 6 according to ISO 14644-1 | Product weight | 7g |
Note on materials | RoHS-compliant | Seals material | NBR |
Material of screws | Steel, chemically nickel-plated | Circlip material | High-alloy stainless steel |
Plug material | Aluminum | Manufacturer ID | 8145478 |
Specifications may be subject to change without notice
