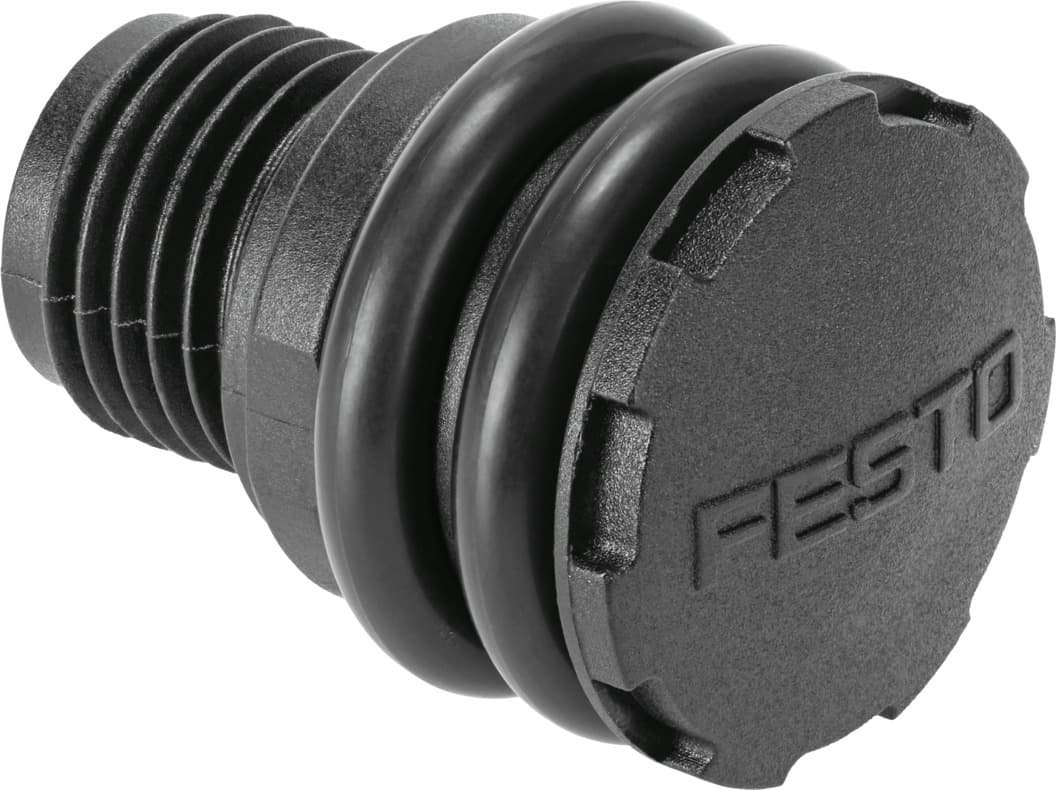

Product Model
vabd-d3-sn-g14
Selling Points
- 1Designed to safeguard compressed air systems from contamination and moisture.
- 2Suitable for any assembly position, with threaded and external (male) thread mounting options.
- 3Operates at pressures up to 10 bar and ambient temperatures from -50°C to 60°C.
- 4Meets ISO 8573-1:2010 standards for compressed air quality.
- 5Built with high-quality EPDM seals for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Any | Symbol | 00991455 |
Operating pressure | 0bar 10bar | Explosion prevention and protection | Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX) |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | LABS (PWIS) conformity | VDMA24364 zone III |
Degree of protection | IP65 | Ambient temperature | -50°C 60°C |
Type of mounting | Screw-in With external thread | Note on materials | RoHS-compliant |
Seals material | EPDM | Vent screw material | PA |
Manufacturer ID | 563400 |
Specifications may be subject to change without notice
