Product Model

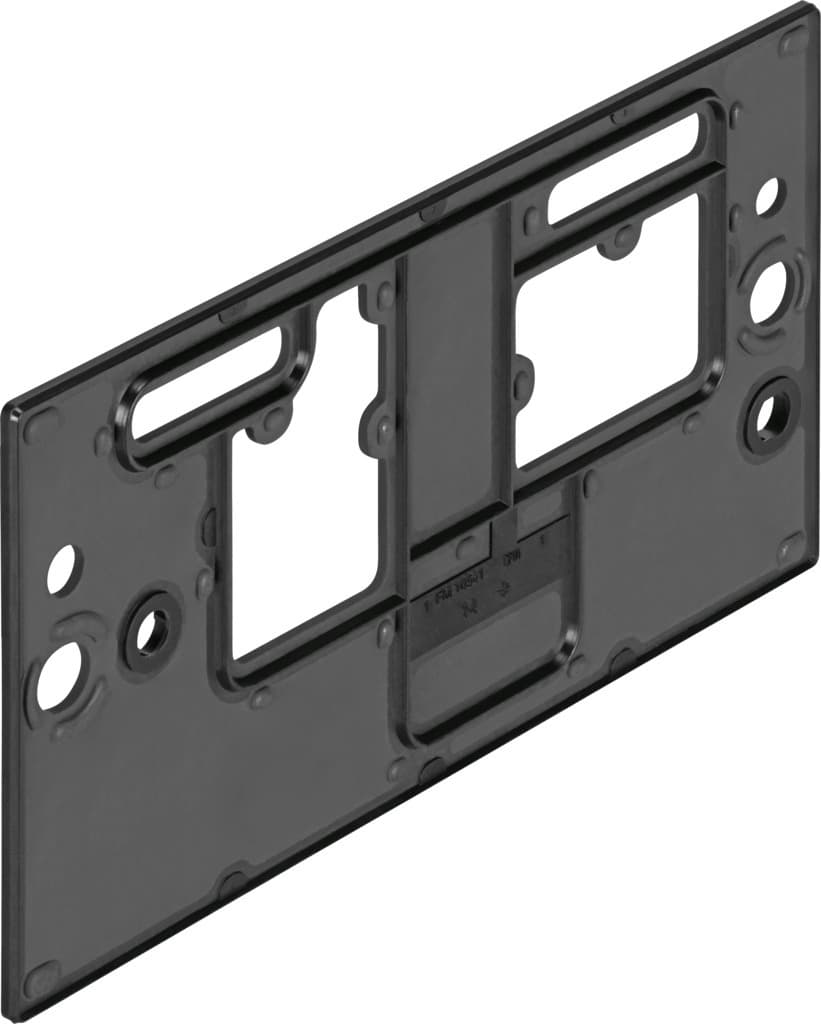

vabd-s1-1-p1-c
Selling Points
- 1Efficient Duct Separation: The VABD-S1-1-P1-C separator plate ensures precise duct separation via throttle plate, based on ISO 5599-1 standards.
- 2Wide Operating Pressure Range: Operates effectively within a pressure range of 0 to 10 bar, making it versatile for various applications.
- 3Suitable for Vacuum Systems: Designed for suitability in vacuum systems, ensuring reliable performance in demanding environments.
- 4CE Marked and RoHS Compliant: Meets EU Low Voltage Directive and is RoHS compliant, ensuring safety and environmental responsibility.
- 5Durable Construction: Constructed from steel with NBR materials, providing a durable and long-lasting solution for duct separation needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Exhaust air function | Via throttle plate | Based on norm | ISO 5599-1 |
Operating pressure | 0bar 10bar | Suitability for vacuum | yes |
CE marking (see declaration of conformity) | As per EU low voltage directive | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -20°C 60°C |
Temperature of medium | -10°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -10°C 50°C | Product weight | 60g |
Note on materials | RoHS-compliant | Separator plate material | Steel NBR |
Manufacturer ID | 8029438 |
Specifications may be subject to change without notice
