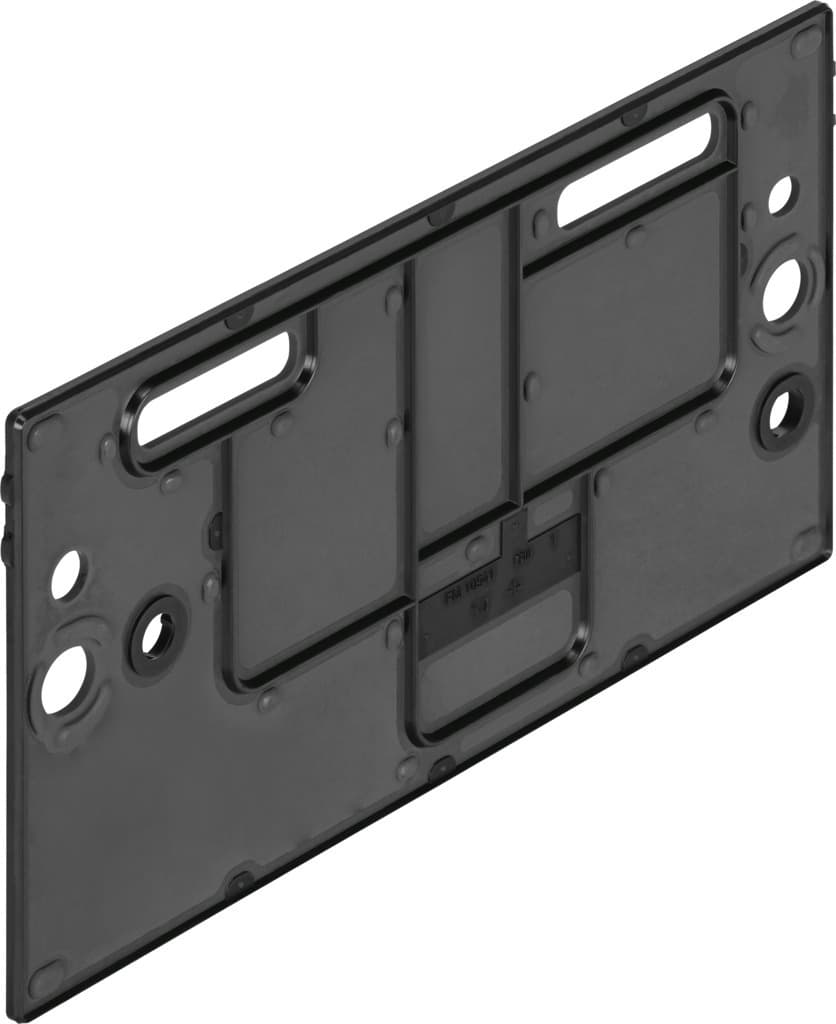

Product Model
vabd-s1-1-p3-c
Selling Points
- 1Optimizes airflow with a throttle plate, ensuring precise control over exhaust air.
- 2Meets ISO 5599-1 standards and CE marking for EU low-voltage directive compliance.
- 3Operates at 0-10 bar pressure and is suitable for vacuum environments.
- 4Made from steel and NBR materials, ensuring durability and resistance to corrosion.
- 5Compatible with compressed air systems as per ISO 8573-1:2010, facilitating seamless integration into existing setups.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Exhaust air function | Via throttle plate | Based on norm | ISO 5599-1 |
Operating pressure | 0bar 10bar | Suitability for vacuum | yes |
CE marking (see declaration of conformity) | As per EU low voltage directive | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -20°C 60°C |
Temperature of medium | -10°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -10°C 50°C | Product weight | 75g |
Note on materials | RoHS-compliant | Separator plate material | Steel NBR |
Manufacturer ID | 8029440 |
Specifications may be subject to change without notice
