Product Model

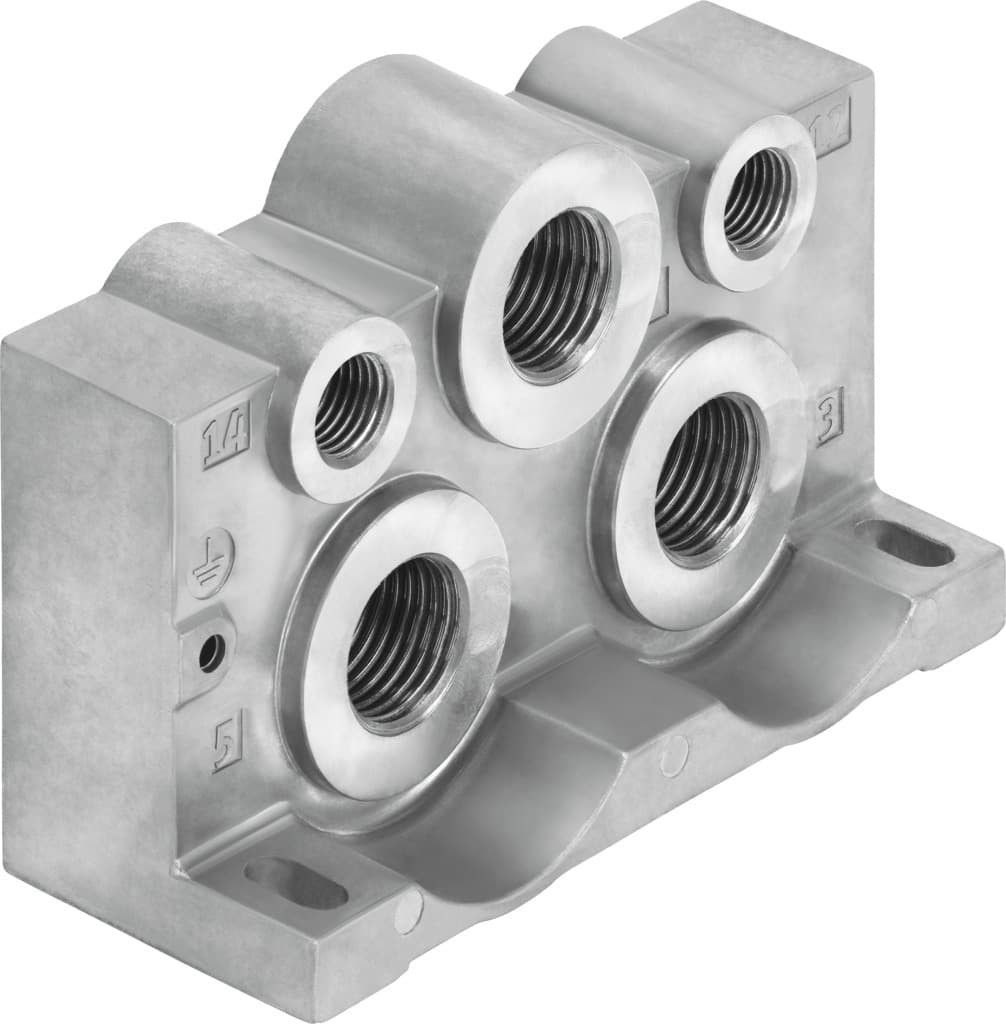

vabe-s1-1lz-n12
Selling Points
- 1Built with die-cast aluminum for durability and resistance to corrosion.
- 2Easy installation via through-hole for M6 screw, suitable for various pneumatic applications.
- 3Operates under 0-10 bar pressure, ensuring reliable performance in demanding environments.
- 4Meets ISO 8573-1:2010 and ISO 5599-1 standards for compressed air and pneumatic systems.
- 5Designed to handle vacuum conditions, making it versatile for diverse industrial uses.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 44mm | Exhaust air function | Via throttle plate |
Based on norm | ISO 5599-1 | Operating pressure | 0bar 10bar |
Suitability for vacuum | yes | CE marking (see declaration of conformity) | As per EU low voltage directive |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Storage temperature | -20°C 60°C | Temperature of medium | -10°C 50°C |
Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Ambient temperature | -10°C 50°C |
Product weight | 400g | Type of mounting | with through-hole for M6 screw |
Pilot air port 12/14 | 1/4 NPT | Pneumatic connection 1 | 1/2 NPT |
Pneumatic connection 3 | 1/2 NPT | Pneumatic connection 5 | 1/2 NPT |
Note on materials | RoHS-compliant | End plate material | Die-cast aluminum |
Manufacturer ID | 8032661 |
Specifications may be subject to change without notice
