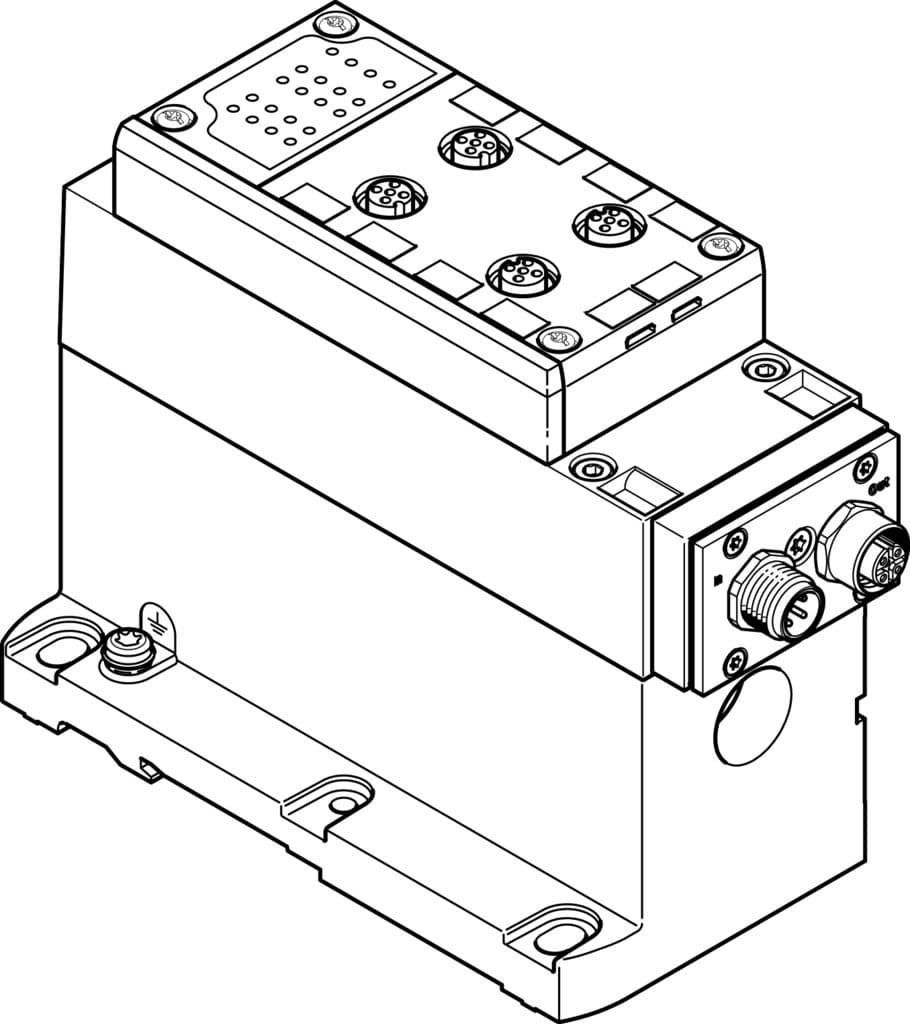

Festo VABE-S6-1LF-C-A4-E Electrical Interface: High-Performance Solution

Selling Points

1High-Performance Electrical Interface: The Festo VABE-S6-1LF-C-A4-E offers a robust electrical interface designed for high-performance applications, ensuring reliable operation in various environments.
2Versatile Mounting Options: This electrical interface can be mounted in any position, providing flexibility in system design and installation.
3V DC Nominal Operating Voltage: With a nominal operating voltage of 24V DC, this interface is suitable for a wide range of industrial applications.
4±10% Voltage Oscillations Permitted: The interface allows for ±10% voltage oscillations, ensuring it can handle minor fluctuations in power supply.
5CE Certification for Safety and Compliance: The Festo VABE-S6-1LF-C-A4-E is CE certified, ensuring compliance with safety standards and regulations in the European market.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Mounting position	Any	Fieldbus interface	Socket, M12x1, 4-pin Plug, M12x1, 4-pin
Max. no. of solenoid coils	4	Number of slaves per device	1
Max. no. of outputs	4	Max. number of inputs	4
Nominal operating voltage DC	24V	Permissible voltage fluctuations	+/- 10 %
CE marking (see declaration of conformity)	As per EU EMC directive As per EU low voltage directive	Corrosion resistance class (CRC)	0 - No corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Storage temperature	-20°C 60°C
Relative air humidity	0 - 90 %	Degree of protection	IP65
Ambient temperature	-5°C 50°C	Product weight	850g
Electrical actuation	Fieldbus	Electrical connection	Via CPX
Addressing range	1 ... 31 (0) Setting using AS-Interface addressing device	Galvanic isolation fieldbus interface	Optocoupler
Note on materials	RoHS-compliant	Seals material	NBR PUR
Housing material	Die-cast aluminum PA	Manufacturer ID	549042

Specifications may be subject to change without notice
