Product Model
vabe-s6-1lf-c-a8-e
Selling Points

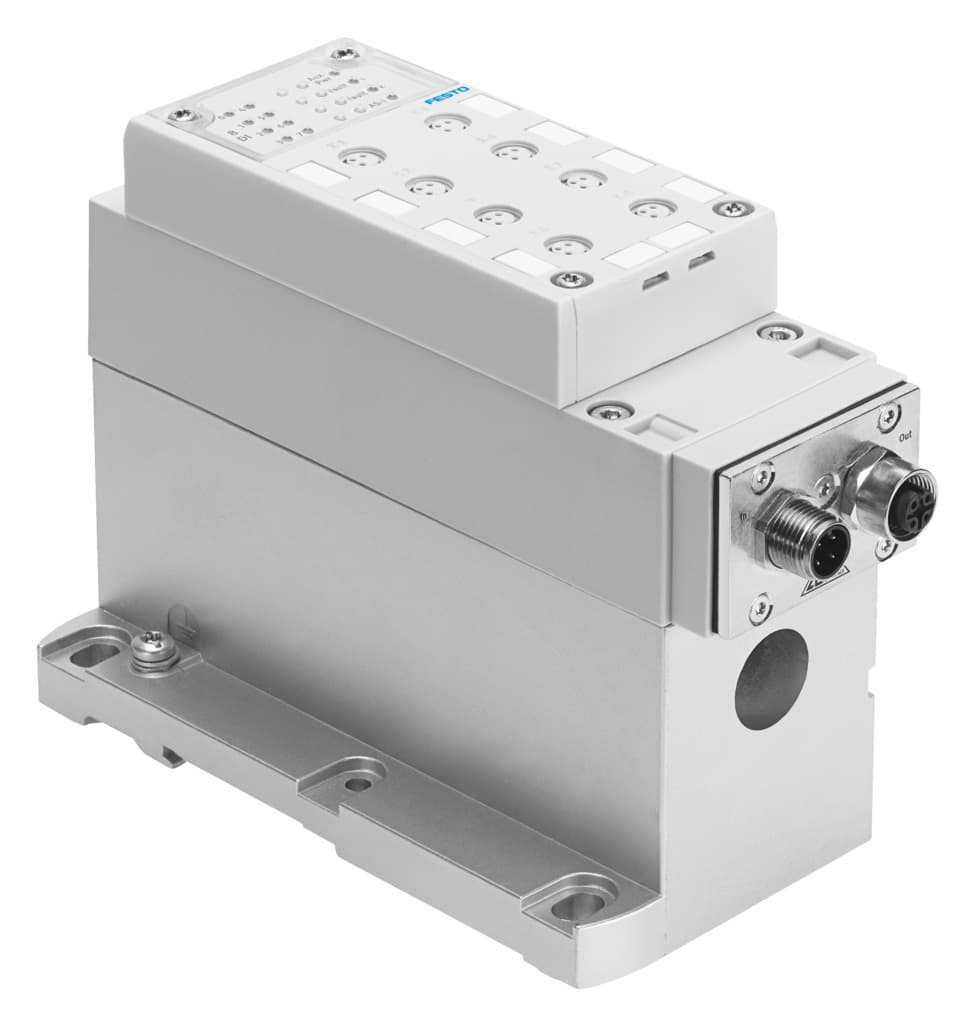

- 1The Festo VABE-S6-1LF-C-A8-E electrical interface offers a field bus interface with a socket and plug connector, ensuring seamless communication in your pneumatic system.
- 2With a maximum of 8 valve coils, this interface is ideal for complex automation tasks, providing flexibility and reliability.
- 3The device supports up to 8 inputs and 8 outputs, making it versatile for various control applications.
- 4Designed with corrosion resistance class CRC 0 and IP65 protection, the VABE-S6-1LF-C-A8-E ensures durability in harsh environments.
- 5Operating within a nominal voltage of 24 V DC and permissible voltage fluctuations of +/- 10%, this interface is reliable and efficient in its operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Any | Fieldbus interface | Socket, M12x1, 4-pin Plug, M12x1, 4-pin |
Max. no. of solenoid coils | 8 | Number of slaves per device | 2 |
Max. no. of outputs | 8 | Max. number of inputs | 8 |
Nominal operating voltage DC | 24V | Permissible voltage fluctuations | +/- 10 % |
CE marking (see declaration of conformity) | As per EU EMC directive As per EU low voltage directive | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -20°C 60°C |
Relative air humidity | 0 - 90 % | Degree of protection | IP65 |
Ambient temperature | -5°C 50°C | Product weight | 850g |
Electrical actuation | Fieldbus | Electrical connection | Via CPX |
Addressing range | 1 ... 31 (0) Setting using AS-Interface addressing device | Galvanic isolation fieldbus interface | Optocoupler |
Note on materials | RoHS-compliant | Seals material | NBR PUR |
Housing material | Die-cast aluminum PA | Manufacturer ID | 549043 |
Specifications may be subject to change without notice
