Product Model

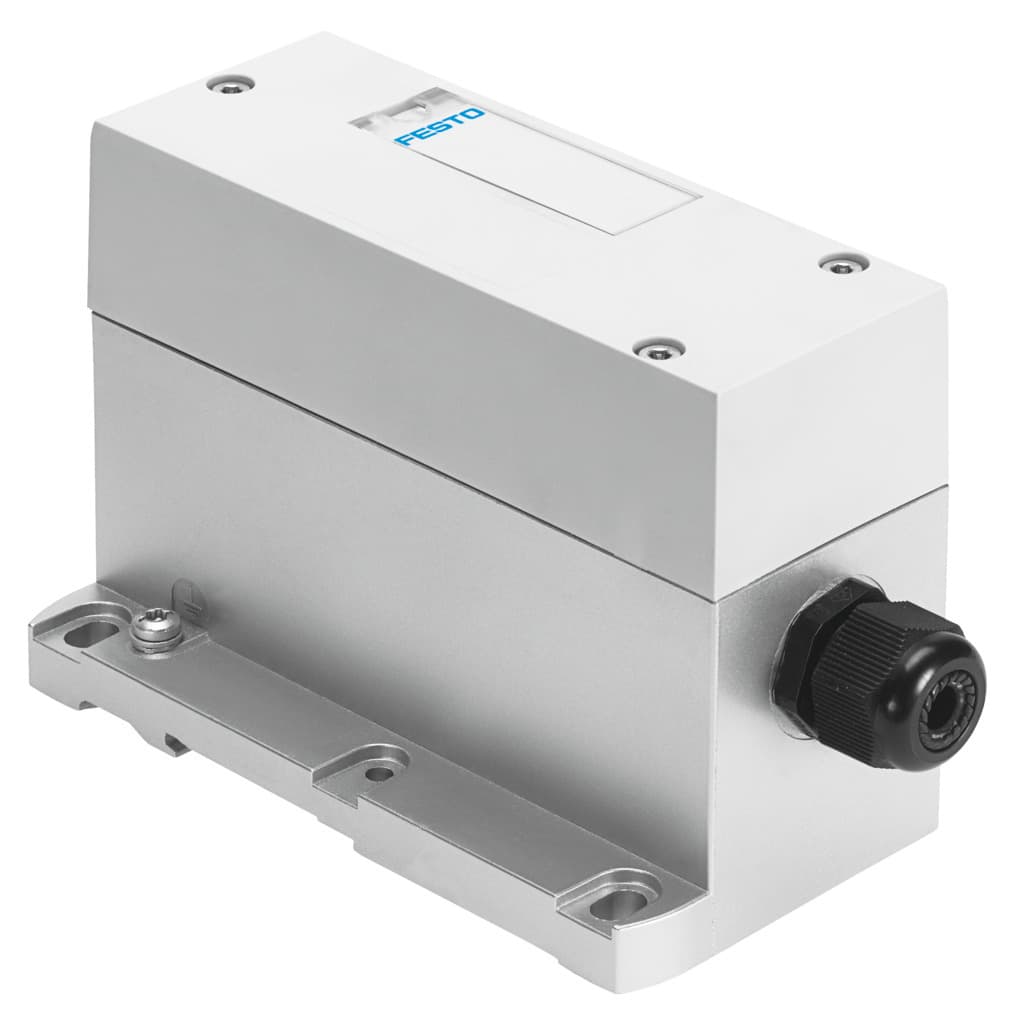

vabe-s6-1lf-c-m1-c36m
Selling Points
- 1The VABE-S6-1LF-C-M1-C36M multi-pin node is designed to control up to 16 bistable or 32 monostable valves, making it versatile for various pneumatic applications.
- 2This node operates at a nominal DC voltage of 24 V and has a surge strength of 1.5 kV, ensuring reliable operation in demanding environments.
- 3The product features a degree of protection of IP65 and NEMA 4, along with a corrosion resistance class of CRC 0, making it suitable for harsh industrial conditions.
- 4The VABE-S6-1LF-C-M1-C36M is compatible with valve terminals VTSA and VTSA-F, offering seamless integration into existing Festo systems.
- 5With a product weight of 545 grams and an ambient temperature range of -5°C to 50°C, this multi-pin node is both compact and durable.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 61984 | Mounting position | Any |
Max. no. of valve positions | 16 for bistable pneumatic valves 32 for monostable pneumatic valves | Max. residual current | 6A |
Nominal operating voltage DC | 24V | Surge resistance | 1.5kV |
Current rating at 40° C | 1A | Contamination level | 3 |
Permissible voltage fluctuations | +/- 10 % | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Ambient temperature | -5°C 50°C | Product weight | 545g |
Electrical actuation | Multi-pin | Electrical connection | Socket/terminal strip |
Cover material | PA | Housing material | Die-cast aluminum |
Manufacturer ID | 543412 |
Specifications may be subject to change without notice
