Product Model

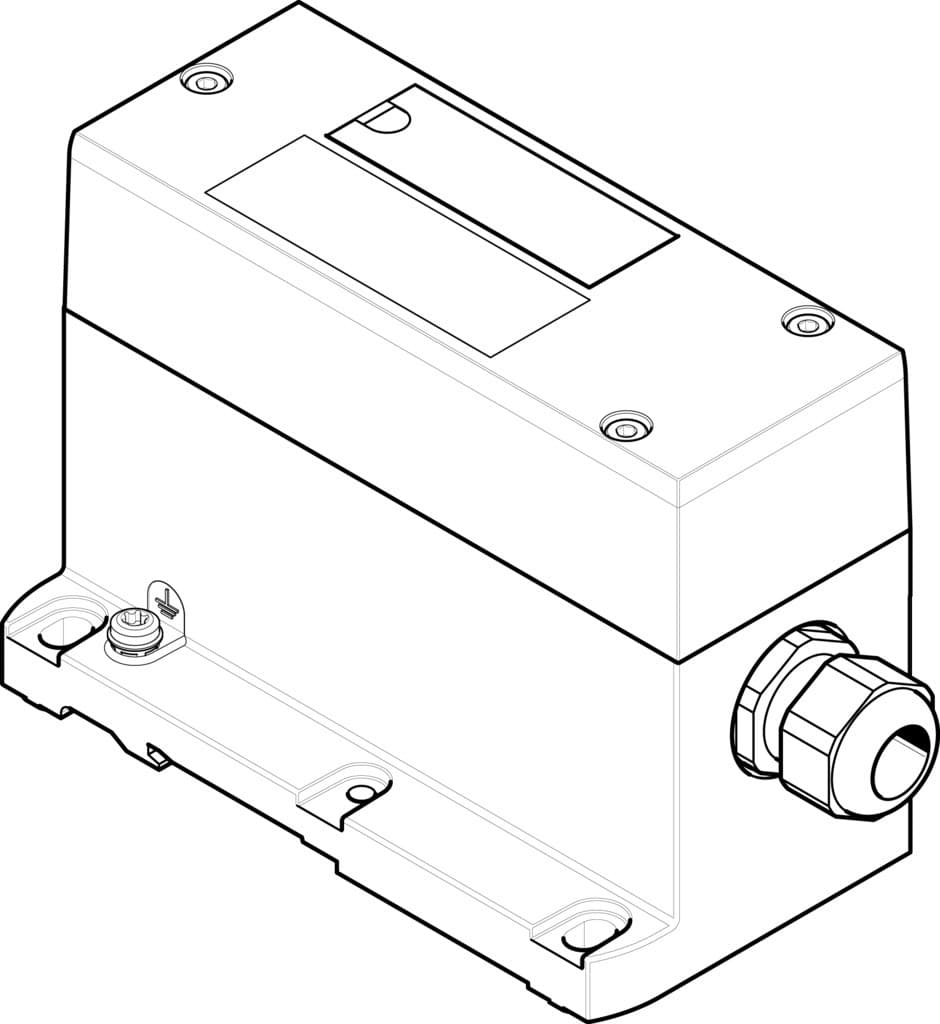

vabe-s6-1lf-c-m1-c36n
Selling Points
- 1The Festo VABE-S6-1LF-C-M1-C36N multi-pin node is based on the standard EN 61984, ensuring high reliability and compliance with industry standards.
- 2This node offers optional mounting positions, providing flexibility in installation and integration with various pneumatic systems.
- 3It supports up to 16 valve positions with bistable valves and up to 32 valve positions with monostable valves, making it versatile for different control needs.
- 4The node operates at a nominal DC voltage of 24V and has a maximum resultant current of 6A, ensuring efficient and reliable operation.
- 5The VABE-S6-1LF-C-M1-C36N features IP65 and NEMA 4 degrees of protection, ensuring it can withstand harsh environments and maintain its performance under various conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | EN 61984 | Mounting position | Any |
Max. no. of valve positions | 16 for bistable pneumatic valves 32 for monostable pneumatic valves | Max. residual current | 6A |
Nominal operating voltage DC | 24V | Surge resistance | 1.5kV |
Current rating at 40° C | 1A | Contamination level | 3 |
Permissible voltage fluctuations | +/- 10 % | CE marking (see declaration of conformity) | As per EU low voltage directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Ambient temperature | -5°C 50°C | Product weight | 540g |
Electrical actuation | Multi-pin | Electrical connection | Socket/terminal strip |
Cover material | PA | Housing material | Die-cast aluminum |
Manufacturer ID | 543413 |
Specifications may be subject to change without notice
