Product Model
vabe-s6-1lf-c-m1-r19
Selling Points

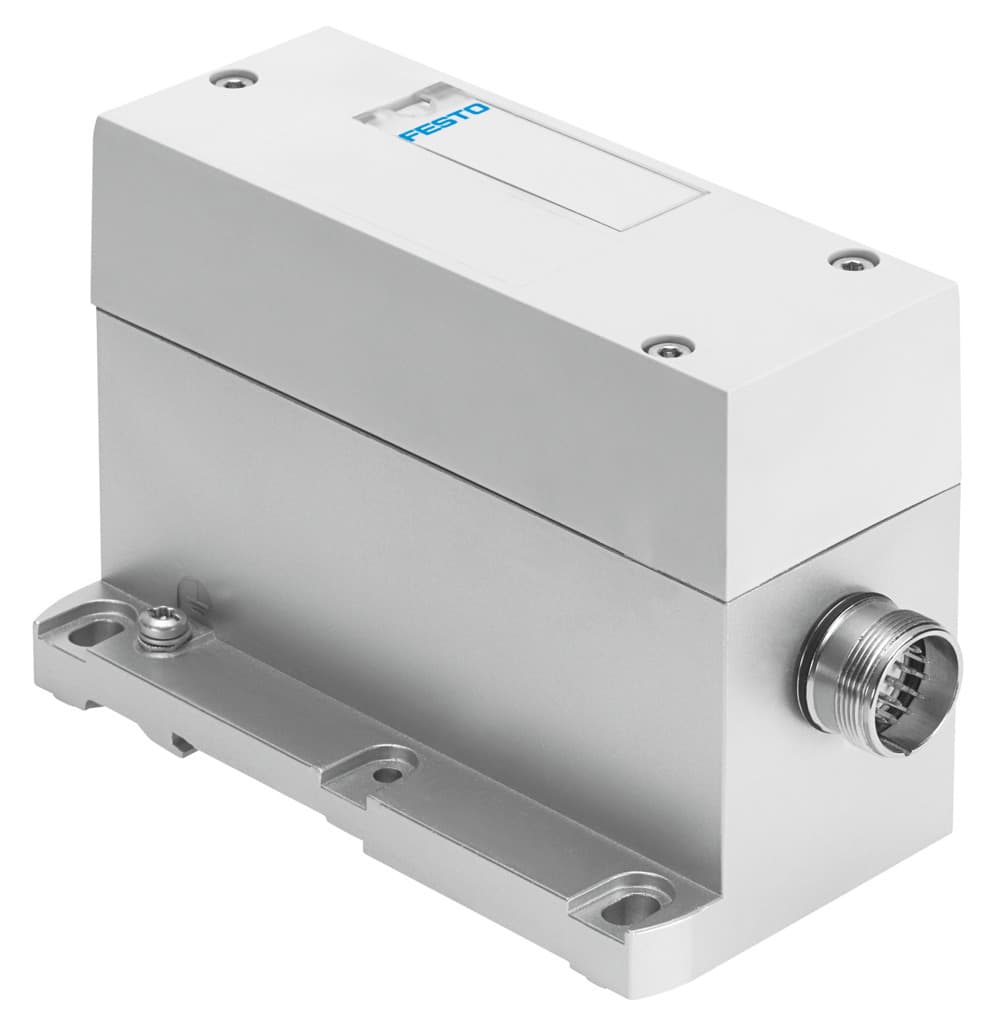

- 1Flexible Control Options: The Festo VABE-S6-1LF-C-M1-R19 multi-pin node offers optional mounting positions and supports up to 16 monostable and 8 bistable valve positions, providing flexible control for various pneumatic applications.
- 2Reliable Operating Voltage: This node operates at a nominal 24V DC with permissible voltage fluctuations of +/- 10%, ensuring reliable performance in a wide range of environments.
- 3Enhanced Protection and Durability: The device features IP65 and NEMA 4 degrees of protection, along with die-cast aluminum housing and PA cover material, providing excellent corrosion resistance and durability.
- 4Comprehensive Compatibility: Designed for use with valve terminals VTSA and VTSA-F, the VABE-S6-1LF-C-M1-R19 is compatible with various pneumatic control systems, making it a versatile solution for industrial automation.
- 5User-Friendly Installation: With clear technical data and instructions available, the installation and commissioning of the VABE-S6-1LF-C-M1-R19 can be conducted by qualified personnel, ensuring smooth integration into existing systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Any | Max. no. of valve positions | 16 for monostable pneumatic valves 8 for bistable pneumatic valves |
Nominal operating voltage DC | 24V | Permissible voltage fluctuations | +/- 10 % |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Degree of protection | IP65 NEMA 4 | Ambient temperature | -5°C 50°C |
Product weight | 539g | Electrical actuation | Multi-pin |
Electrical connection | 19-pin Plug as per CNOMO E03.62.530.N | Cover material | PA |
Housing material | Die-cast aluminum | Manufacturer ID | 543415 |
Specifications may be subject to change without notice
