Product Model
vabe-s6-1lt-c-m1-s37
Selling Points

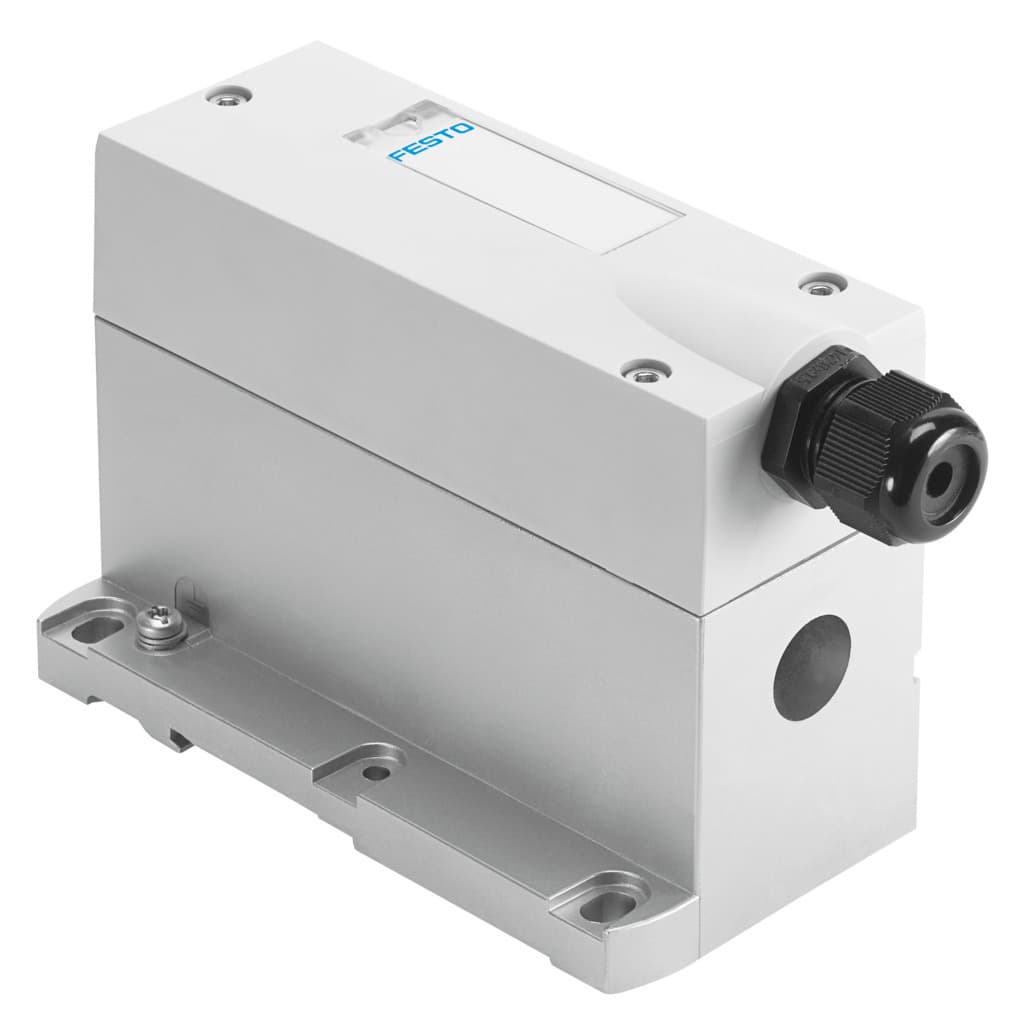

- 1The VABE-S6-1LT-C-M1-S37 multi-pin node from Festo is designed to control up to 16 bistable or 32 monostable pneumatic valves, making it versatile for various applications.
- 2This multi-pin node operates at a nominal voltage of 24 V DC with a permissible voltage fluctuation of ±10%, ensuring reliable operation in a wide range of conditions.
- 3The product features a robust design with an IP65/NEMA 4 protection class, suitable for use in harsh environments with ambient temperatures ranging from -5°C to 50°C.
- 4The VABE-S6-1LT-C-M1-S37 is made from high-quality materials, including aluminum die-cast housing and PA cover, ensuring durability and resistance to corrosion.
- 5It is crucial to use only PELV circuits with this product for extra-low voltage supply to guarantee a reliable separation from the mains network, ensuring safety and preventing electric shock.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Any | Max. no. of valve positions | 16 for bistable pneumatic valves 32 for monostable pneumatic valves |
Nominal operating voltage DC | 24V | Permissible voltage fluctuations | +/- 10 % |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Degree of protection | IP65 NEMA 4 | Ambient temperature | -5°C 50°C |
Product weight | 459g | Electrical actuation | Multi-pin |
Electrical connection | Cable with plug | Cover material | PA |
Housing material | Die-cast aluminum | Manufacturer ID | 543414 |
Specifications may be subject to change without notice
