Product Model

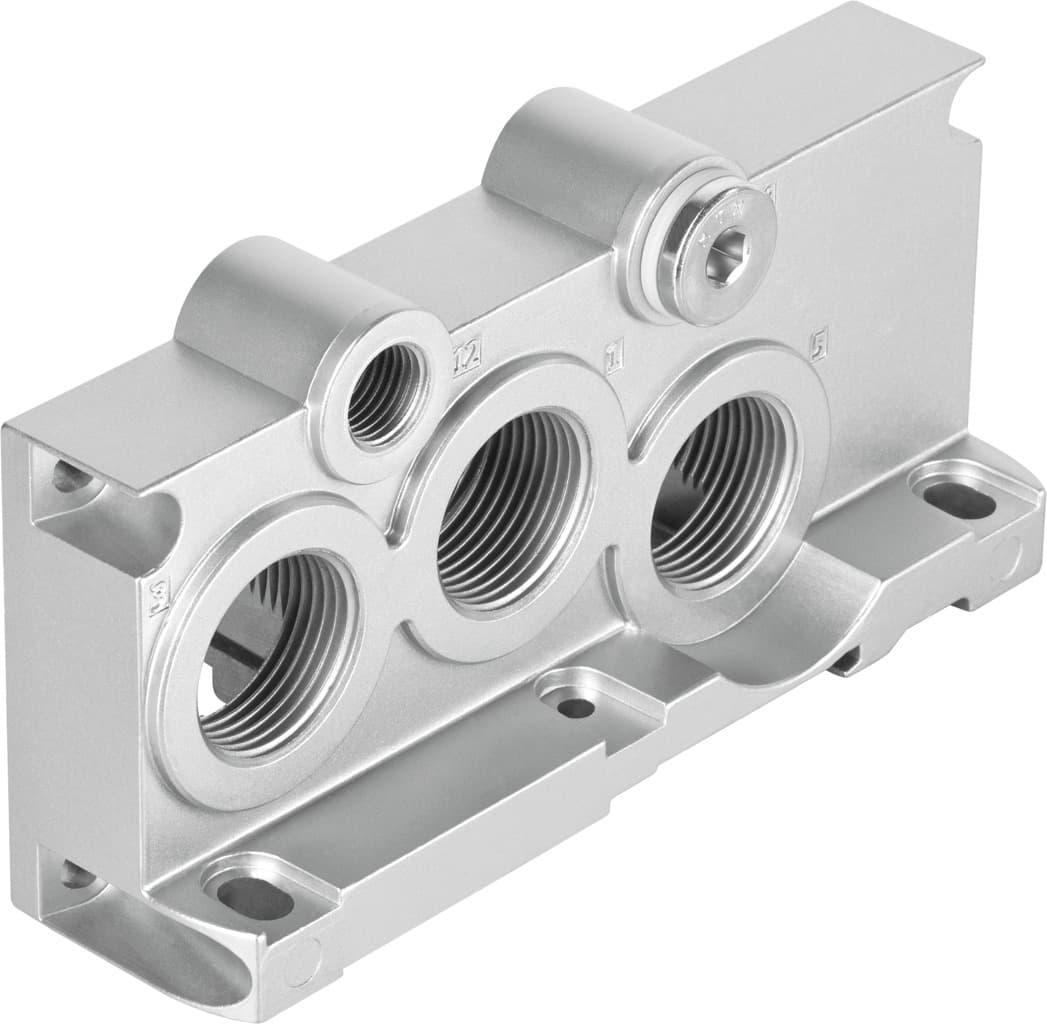

vabe-s6-2r-g34
Selling Points
- 1ISO 5599-2 Compliance: Meets international standards for pneumatic connections.
- 2Optional Mounting Position: Flexible installation options for various applications.
- 3Robust Die-Cast Aluminum: Durable material ensuring long-lasting performance.
- 4High Operating Pressure: Handles pressures from -0.09 MPa to 1 MPa.
- 5Corrosion Resistance: No corrosion stress with CRC class 0, ensuring reliability in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | ISO 5599-2 | Mounting position | Any |
Valve terminal type | 44 | Operating pressure | -0.9bar 10bar |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Product weight | 336g | Pilot air port 12 | G1/4 |
Pneumatic connection 1 | G3/4 | Pneumatic connection 3 | G3/4 |
Pneumatic connection 5 | G3/4 | Note on materials | RoHS-compliant |
End plate material | Die-cast aluminum | Manufacturer ID | 560837 |
Specifications may be subject to change without notice
