Product Model
vabe-s6-lt-c-s10-r5
Selling Points

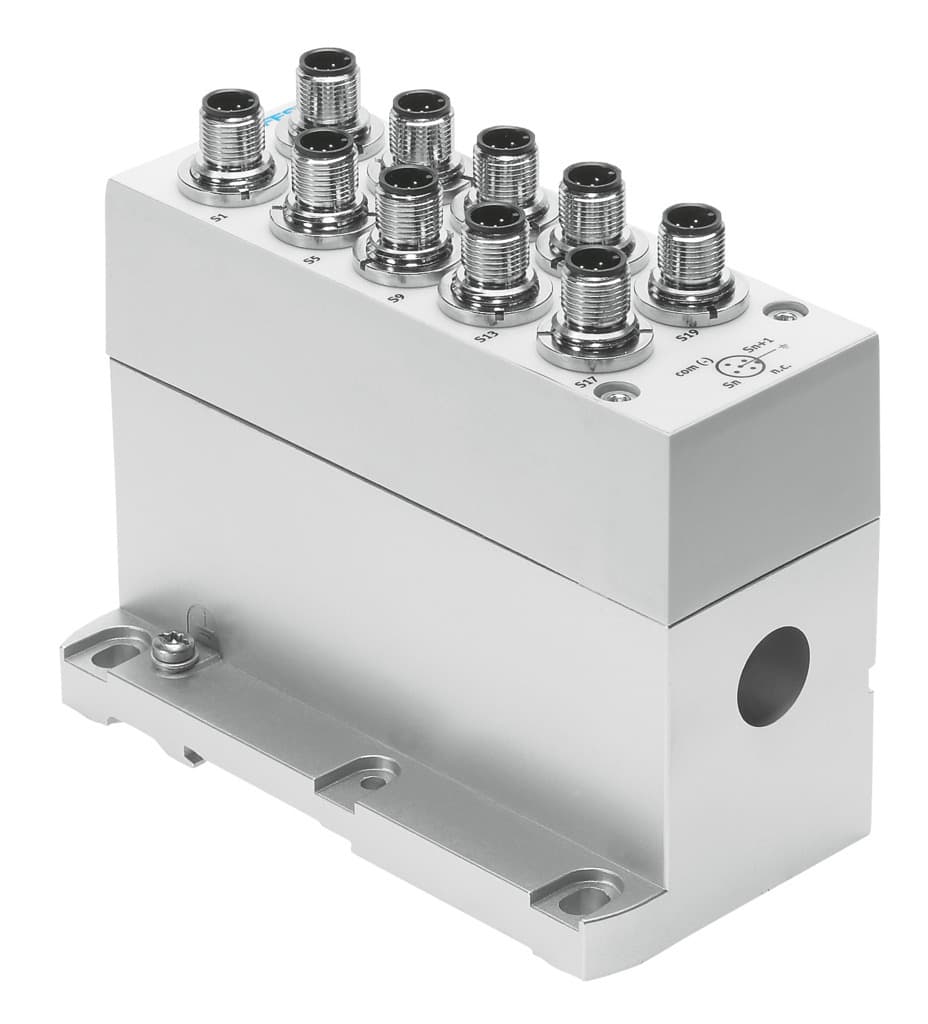

- 1The Festo VABE-S6-LT-C-S10-R5 is a robust multi-pin node designed to handle high-performance valve terminals, ensuring reliable operation in various industrial applications.
- 2This node supports up to 10 valve positions with bistable valves and up to 20 positions with monostable valves, offering flexibility in system design.
- 3The VABE-S6-LT-C-S10-R5 operates within a wide temperature range of -5°C to +50°C and can handle a maximum cumulative current of 10A.
- 4With a nominal operating voltage of 24V DC and permitted voltage oscillations of ±10%, this node ensures efficient power management in your industrial setup.
- 5The M12 plug and seal type ensure a secure connection, making the VABE-S6-LT-C-S10-R5 a durable addition to your valve terminal system.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Mounting position | Any | Max. no. of valve positions | 10 for bistable pneumatic valves 20 for monostable pneumatic valves |
Max. residual current | 10A | Nominal operating voltage DC | 24V |
Permissible voltage fluctuations | +/- 10 % | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Ambient temperature | -5°C 50°C | Product weight | 790g |
Number of electrical connections | 10 | Electrical actuation | Multi-pin |
Electrical connection | 5-pin M12 Plug | Cover material | PA |
Housing material | Die-cast aluminum | Manufacturer ID | 549047 |
Specifications may be subject to change without notice
