Product Model

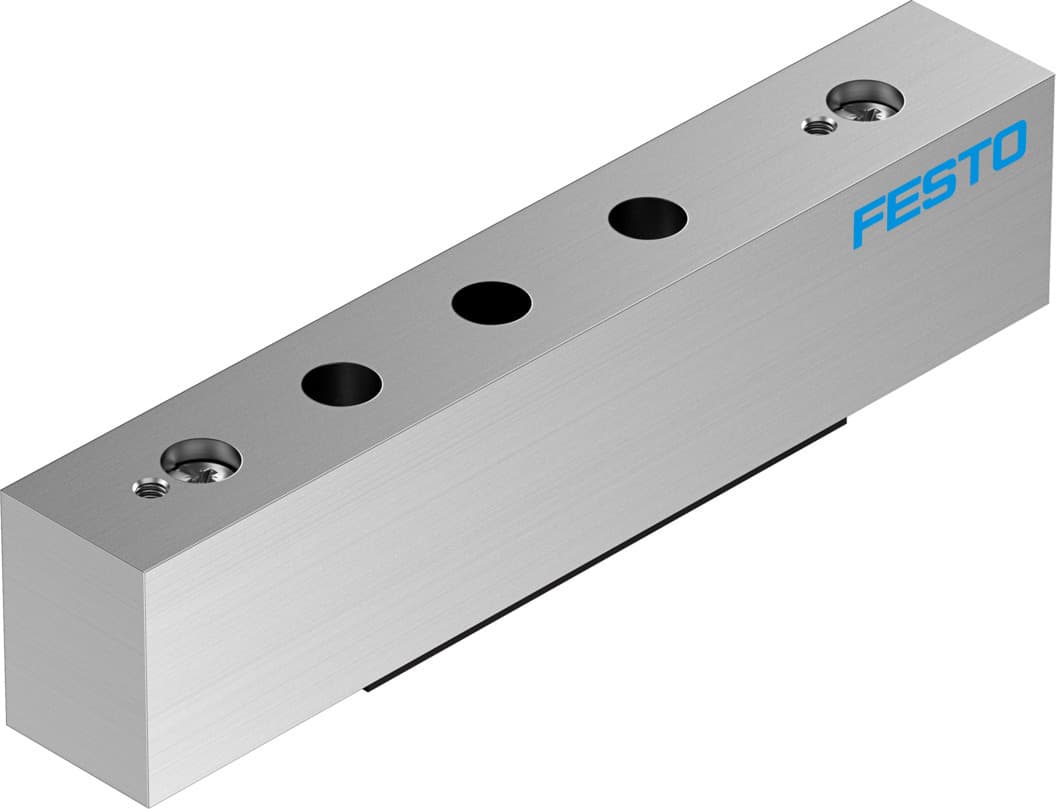

vabf-l1-p3a3-g18
Selling Points
- 116MM Grid Dimension: Ideal for precise pneumatic applications.
- 21 Max. Valve Position: Simplifies setup and operation.
- 3-0.9 to 10 BAR Operating Pressure: Versatile for various pneumatic systems.
- 4RCM and UL Compliant: Meets international safety standards.
- 5RoHS-Compliant Materials: Environmentally friendly and durable construction.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width dimension | 16mm | Max. no. of valve positions | 1 |
Symbol | 00995306 | Operating pressure | -0.9bar 10bar |
Certification | RCM compliance mark c UL us - Recognized (OL) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Max. tightening torque for valve mounting | 0.65Nm |
Product weight | 350g | Pneumatic connection 1 | G1/8 |
Note on materials | RoHS-compliant | Plate material | Wrought aluminum alloy |
Manufacturer ID | 574593 |
Specifications may be subject to change without notice
