Product Model
vabf-s1-1-l1d1-c
Selling Points
- 1The VABF-S1-1-L1D1-C offers precise shut-off control for pneumatic systems, ensuring reliable operation and minimizing pressure leaks.
- 2This vertical pressure shut-off plate is based on the standard ISO 5599-1, ensuring compatibility with a wide range of pneumatic systems.
- 3The VABF-S1-1-L1D1-C can be mounted between manifold sub-bases and valve terminals, providing flexibility in system design.
- 4Made from die-cast aluminum, this component is robust and durable, withstanding operating pressures up to 10 bar.
- 5The VABF-S1-1-L1D1-C features a corrosion resistance class of CRC 0, ensuring it remains stress-free in various environmental conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 42mm | Based on norm | ISO 5599-1 |
Mounting position | Any | Pneumatic vertical stacking | Shut-off for 1 |

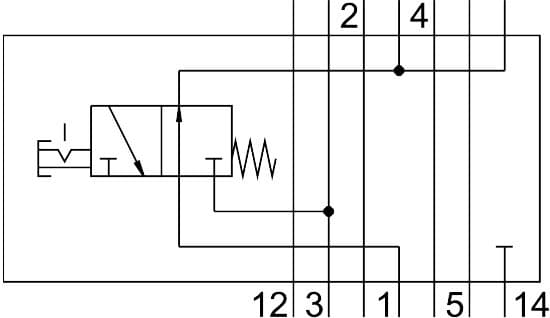

Symbol | 00991890 | Operating pressure | -0.9bar 10bar |
Standard nominal flow rate | 1200l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Ambient temperature | -5°C 50°C | Product weight | 600g |
Vertical stacking mounting type | On manifold sub-base On individual sub-base | Note on materials | RoHS-compliant |
Housing material | Die-cast aluminum | Manufacturer ID | 549103 |
Specifications may be subject to change without notice
