Product Model

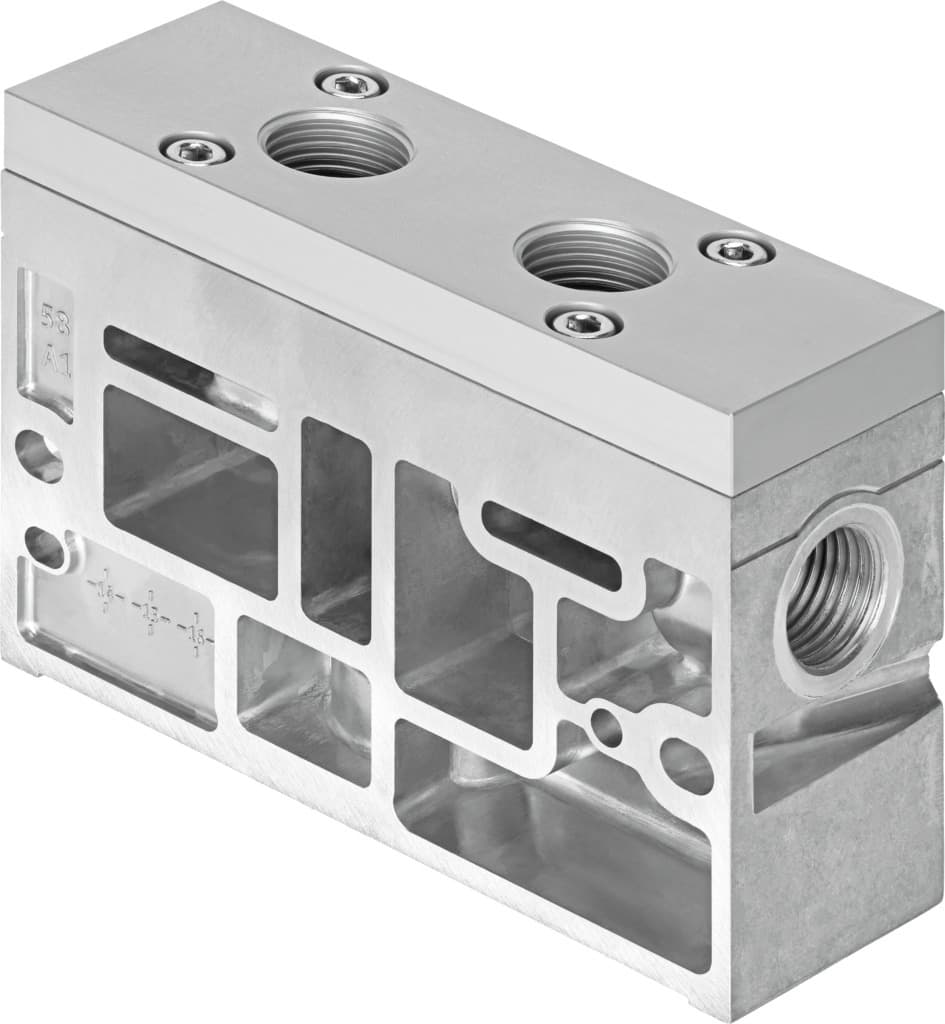

vabf-s1-1-p1a11-n12
Selling Points
- 1Engineered for precise control and reliable operation.
- 2Compatible with various Festo automation systems and configurations.
- 3Constructed from durable, high-quality materials for extended lifespan.
- 4Simple and straightforward installation process with clear instructions.
- 5Optimized for efficient airflow and pressure management in pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 44mm | Exhaust air function | Via throttle plate |
Based on norm | ISO 5599-1 | Max. no. of valve positions | 1 |
Operating pressure | 0bar 10bar | Suitability for vacuum | yes |
CE marking (see declaration of conformity) | As per EU low voltage directive | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | -20°C 60°C |
Temperature of medium | -10°C 50°C | Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Ambient temperature | -10°C 50°C | Product weight | 660g |
Pneumatic connection 1 | 1/2 NPT | Pneumatic connection 3 | 1/2 NPT |
Pneumatic connection 5 | 1/2 NPT | Exhaust plate material | Wrought aluminum alloy |
Note on materials | RoHS-compliant | Supply plate material | Die-cast aluminum |
Manufacturer ID | 8037656 |
Specifications may be subject to change without notice
