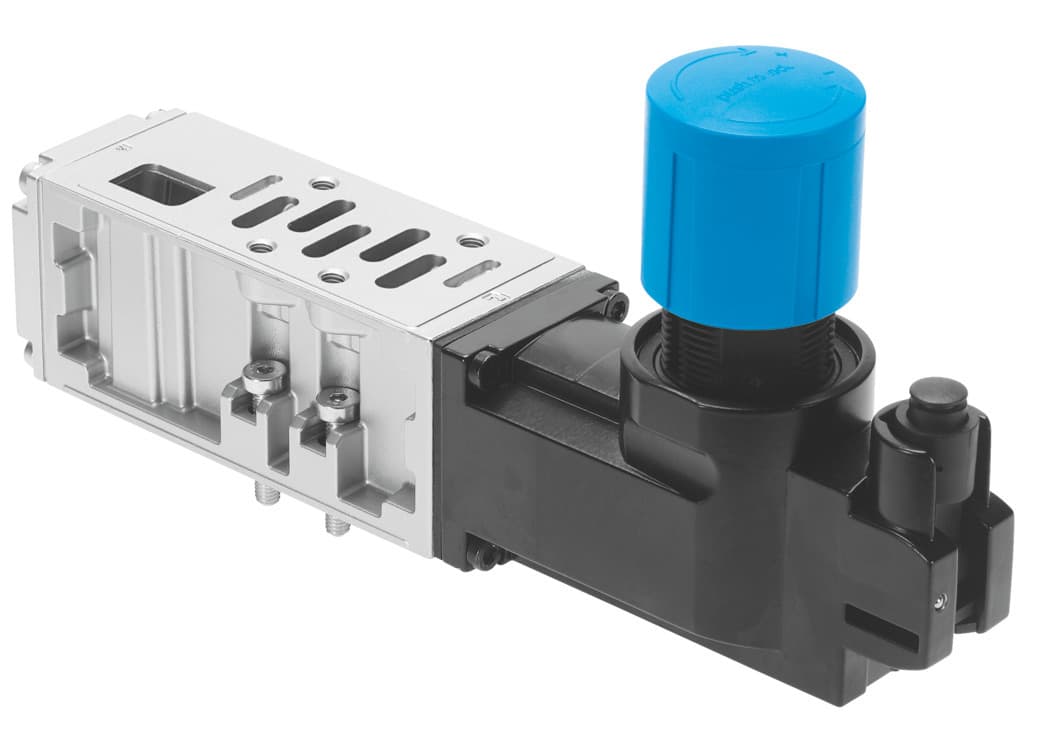

Product Model
vabf-s1-1-r2c2-c-10
Selling Points
- 1The VABF-S1-1-R2C2-C-10 offers a pressure regulation range of 1 to 10 bar, making it suitable for various pneumatic applications.
- 2Compatible with the standard port pattern ISO 5599-1, ensuring seamless integration with valve terminals VTSA.
- 3Features an output pressure constant with secondary exhaust, providing precise control over pneumatic systems.
- 4Constructed from aluminum die-cast material, ensuring durability and corrosion resistance (CRC 0).
- 5Designed for use with compressed air in accordance with ISO8573-1:2010 [7:4:4], ensuring reliable operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 42mm | Based on norm | ISO 5599-1 |
Mounting position | Any | Pneumatic vertical stacking | Pressure regulator for 2 |
Controller function | Outlet pressure constant With secondary exhausting | Symbol | 00991581 |
Optional pressure gauge | Possible | Pressure regulation range MPa | 0.1MPa 1MPa |
Pressure regulation range | 1bar 10bar | Pressure regulation range psi | 14.5psi 145psi |
Inlet pressure 1 | 0.5bar 10bar | Inlet pressure 1 MPa | 0.05MPa 1MPa |
Inlet pressure 1 psi | 7.25psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Ambient temperature | -5°C 50°C | Product weight | 640g |
Vertical stacking mounting type | On manifold sub-base On individual sub-base | Pressure gauge connection | With retaining clamp |
Note on materials | RoHS-compliant | Material of operator panel | PA |
Controller housing material | Die-cast aluminum | Manufacturer ID | 546822 |
Specifications may be subject to change without notice
