Product Model

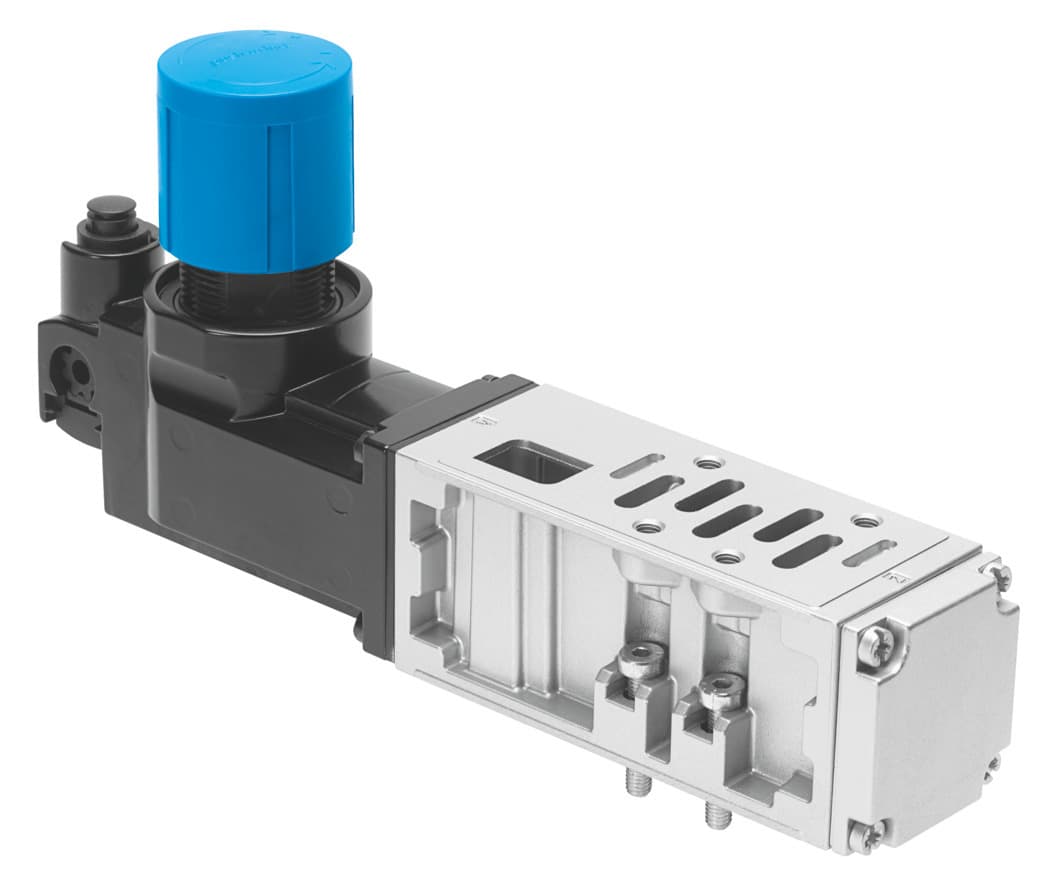

vabf-s1-1-r3c2-c-6
Selling Points
- 1The Festo VABF-S1-1-R3C2-C-6 regulator plate is designed to meet the ISO 5599-1 standard, ensuring compatibility and reliability in pneumatic systems.
- 2This regulator plate supports vertical pneumatic linkage and can be mounted in any position, offering flexibility in system design.
- 3With a pressure regulation range of 1 to 6 bar (14.5 psi to 87 psi), it provides precise control over air pressure in various industrial applications.
- 4The VABF-S1-1-R3C2-C-6 features a controller function that maintains output pressure constant with secondary venting, ensuring stable operation and safety.
- 5Made from die-cast aluminum and PA control panel material, this regulator plate is both durable and resistant to corrosion, with an IP65 protection class and operating temperature range of -5°C to 50°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 42mm | Based on norm | ISO 5599-1 |
Mounting position | Any | Pneumatic vertical stacking | Pressure regulator for 4 |
Controller function | Outlet pressure constant With secondary exhausting | Symbol | 00991579 |
Optional pressure gauge | Possible | Pressure regulation range MPa | 0.1MPa 0.6MPa |
Pressure regulation range | 1bar 6bar | Pressure regulation range psi | 14.5psi 87psi |
Inlet pressure 1 | 0.5bar 10bar | Inlet pressure 1 MPa | 0.05MPa 1MPa |
Inlet pressure 1 psi | 7.25psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Ambient temperature | -5°C 50°C | Product weight | 640g |
Vertical stacking mounting type | On manifold sub-base On individual sub-base | Pressure gauge connection | With retaining clamp |
Note on materials | RoHS-compliant | Material of operator panel | PA |
Controller housing material | Die-cast aluminum | Manufacturer ID | 546819 |
Specifications may be subject to change without notice
