Product Model
vabf-s2-1-a1g2-n38
Selling Points

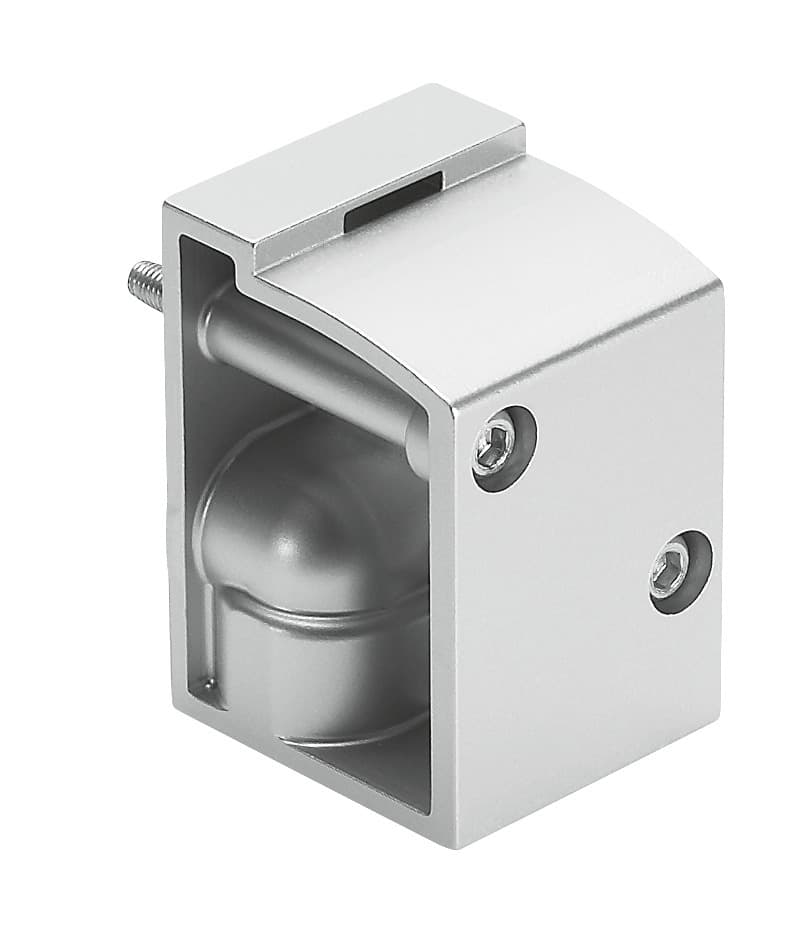

- 1The VABF-S2-1-A1G2-N38 angled connection plate is designed to connect valve terminals at a 90° angle, ensuring efficient and organized pneumatic systems.
- 2Constructed from die-cast aluminum, this component offers high corrosion resistance and durability, making it suitable for various industrial applications.
- 3With a width of 42 mm and based on the ISO 5599-2 standard, this connection plate ensures compatibility with a wide range of pneumatic systems.
- 4Operating within a pressure range of -0.9 to 10 bar, this component is versatile and can handle various operating conditions, including lubricated operations.
- 5Featuring an IP65/NEMA 4 protection class and operating within an ambient temperature range of -5 to 50 °C, this connection plate is reliable and long-lasting in diverse environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 42mm | Based on norm | ISO 5599-2 |
Mounting position | Any | Operating pressure | -0.9bar 10bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Degree of protection | IP65 NEMA 4 | Ambient temperature | -5°C 50°C |
Product weight | 176g | Type of mounting | With through-hole |
Housing material | Die-cast aluminum | Manufacturer ID | 546098 |
