Product Model
vabf-s2-1-f1b1-c
Selling Points

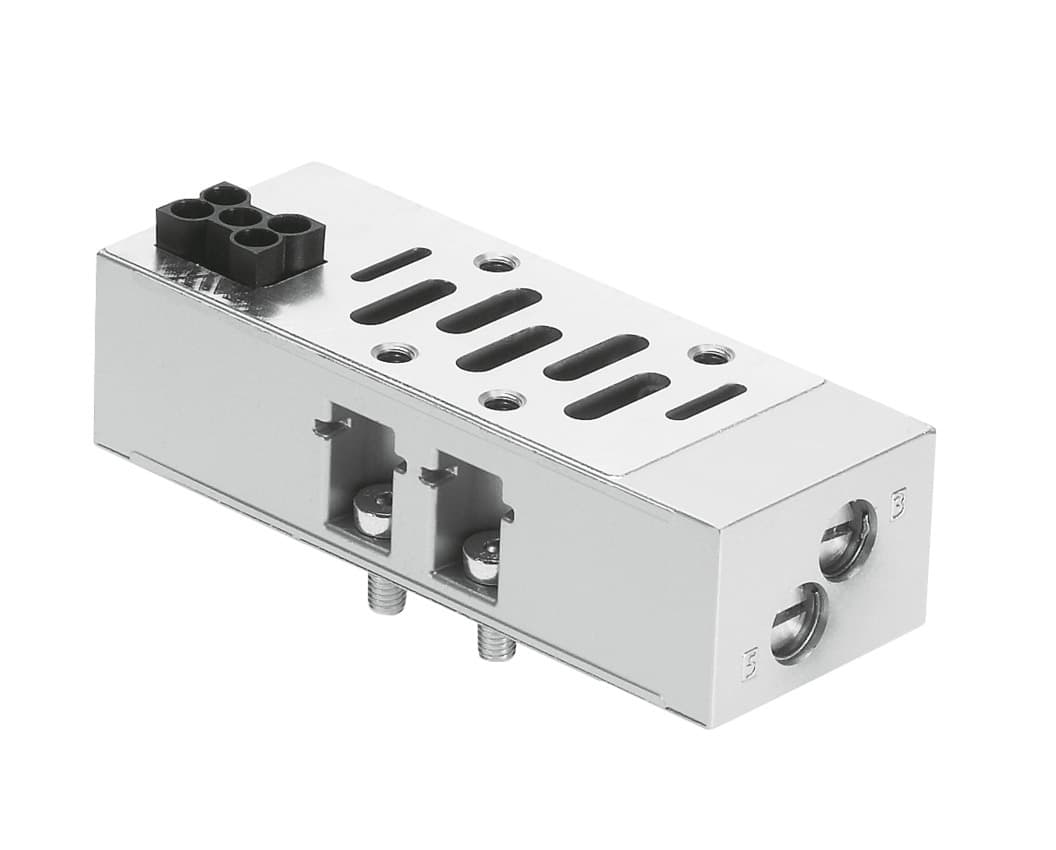

- 1The Festo VABF-S2-1-F1B1-C Flow Control Plate is designed to restrict exhaust air ports 3 and 5 on the valve terminal VTSA, ensuring precise control in pneumatic systems.
- 2This flow control plate operates within a pressure range of -0.9 to 10 bar, making it versatile for various pneumatic applications.
- 3With a standard nominal flow rate of 1,100 l/min and based on ISO 5599-2, the VABF-S2-1-F1B1-C is suitable for high-performance pneumatic systems.
- 4The plate is compatible with lubricated operation and can be mounted in any assembly position, offering flexibility in system design.
- 5The Festo VABF-S2-1-F1B1-C Flow Control Plate features a corrosion-resistant classification of CRC 0 and a protection class of IP65/NEMA 4, ensuring durability and reliability in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 43mm | Based on norm | ISO 5599-2 |
Mounting position | Any | Pneumatic vertical stacking | Throttle plate exhaust air flow control |
Symbol | 00991467 | Operating pressure | -0.9bar 10bar |
Standard nominal flow rate | 1100l/min | CE marking (see declaration of conformity) | as per EU simple pressure vessel directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Ambient temperature | -5°C 50°C | Product weight | 220g |
Vertical stacking mounting type | On manifold sub-base On individual sub-base | Note on materials | RoHS-compliant |
Housing material | Die-cast aluminum | Manufacturer ID | 546095 |
Specifications may be subject to change without notice
