Product Model
vabf-s2-1-p1a3-n38
Selling Points

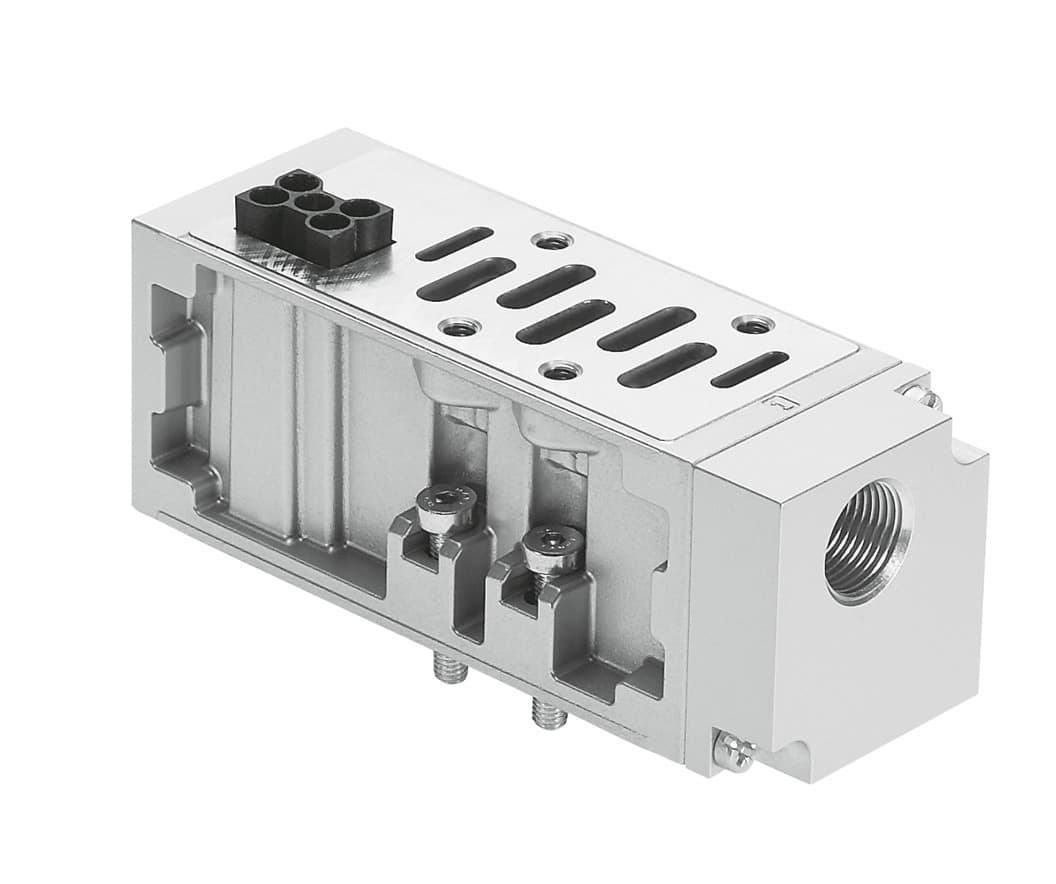

- 1The Festo VABF-S2-1-P1A3-N38 vertical pressure supply plate is designed for pneumatic vertical stacking, offering a versatile mounting position that can be installed anywhere.
- 2With a width of 43 mm and based on the ISO 5599-2 standard, this plate ensures reliable operation in various environments.
- 3The plate supports an alternative pressure supply for one unit, making it an efficient solution for multiple applications.
- 4Operating within a pressure range of -0.9 to 10 bar and featuring a standard nominal flow rate of 1,300 l/min, this plate is optimized for high-performance operations.
- 5Made from aluminum die-cast material and compliant with RoHS regulations, the VABF-S2-1-P1A3-N38 offers excellent corrosion resistance and durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 43mm | Based on norm | ISO 5599-2 |
Mounting position | Any | Pneumatic vertical stacking | Alternative pressure supply for 1 |
Symbol | 00991883 | Operating pressure | -0.9bar 10bar |
Standard nominal flow rate | 1300l/min | CE marking (see declaration of conformity) | as per EU simple pressure vessel directive |
UKCA marking (see declaration of conformity) | To UK instructions for electrical equipment | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Ambient temperature | -5°C 50°C | Product weight | 340g |
Vertical stacking mounting type | On manifold sub-base On individual sub-base | Note on materials | RoHS-compliant |
Housing material | Die-cast aluminum | Manufacturer ID | 546094 |
Specifications may be subject to change without notice
