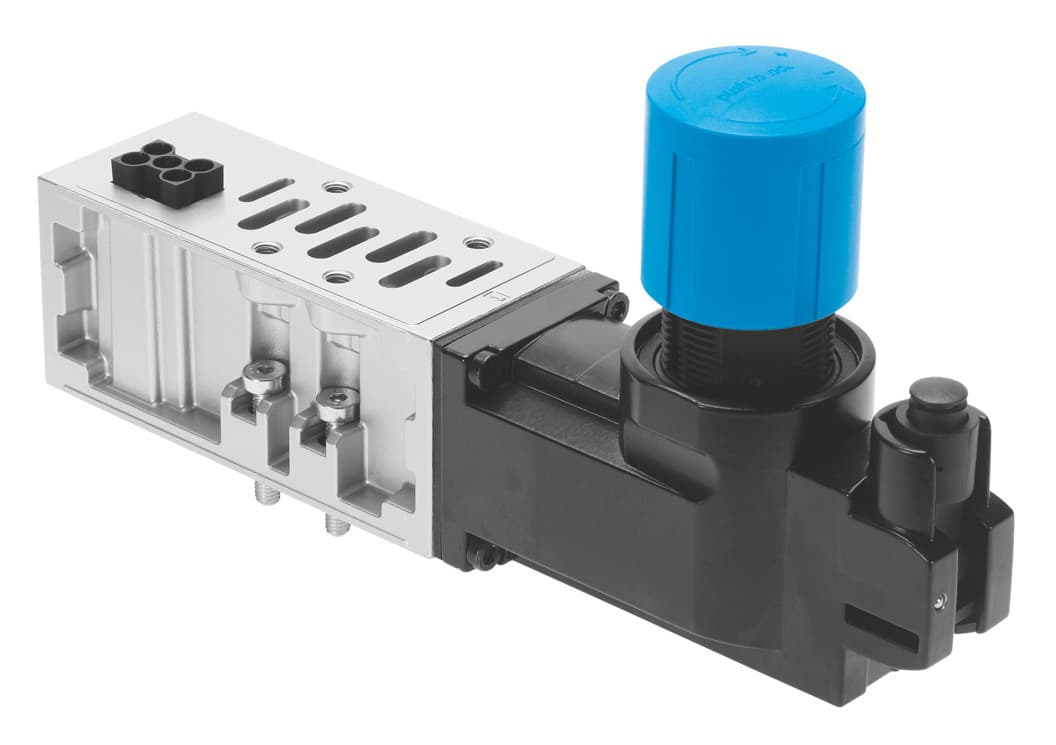

Product Model
vabf-s2-1-r1c2-c-6
Selling Points
- 1Precision Pressure Control: Regulates pressure from 0.5 to 6 bar with constant outlet pressure.
- 2Versatile Mounting: Compatible with any mounting position, including vertical stacking on manifold blocks or individual sub-bases.
- 3Robust Construction: Made from die-cast aluminum housing, ensuring durability and corrosion resistance (CRC 0).
- 4Compliant Standards: Meets ISO 5599-2 and ISO 8573-1:2010 standards for compressed air quality.
- 5Optional Pressure Gauge: Allows for easy pressure monitoring with an optional pressure gauge connection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 42mm | Based on norm | ISO 5599-2 |
Mounting position | Any | Pneumatic vertical stacking | Pressure regulator for 1 |
Controller function | Outlet pressure constant With secondary exhausting | Symbol | 00992227 |
Optional pressure gauge | Possible | Pressure regulation range MPa | 0.05MPa 0.6MPa |
Pressure regulation range | 0.5bar 6bar | Pressure regulation range psi | 7.25psi 87psi |
Inlet pressure 1 | 0.5bar 10bar | Inlet pressure 1 MPa | 0.05MPa 1MPa |
Inlet pressure 1 psi | 7.25psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Ambient temperature | -5°C 50°C | Product weight | 640g |
Vertical stacking mounting type | On manifold sub-base On individual sub-base | Pressure gauge connection | With retaining clamp |
Note on materials | RoHS-compliant | Material of operator panel | PA |
Controller housing material | Die-cast aluminum | Manufacturer ID | 546083 |
Specifications may be subject to change without notice
