Product Model

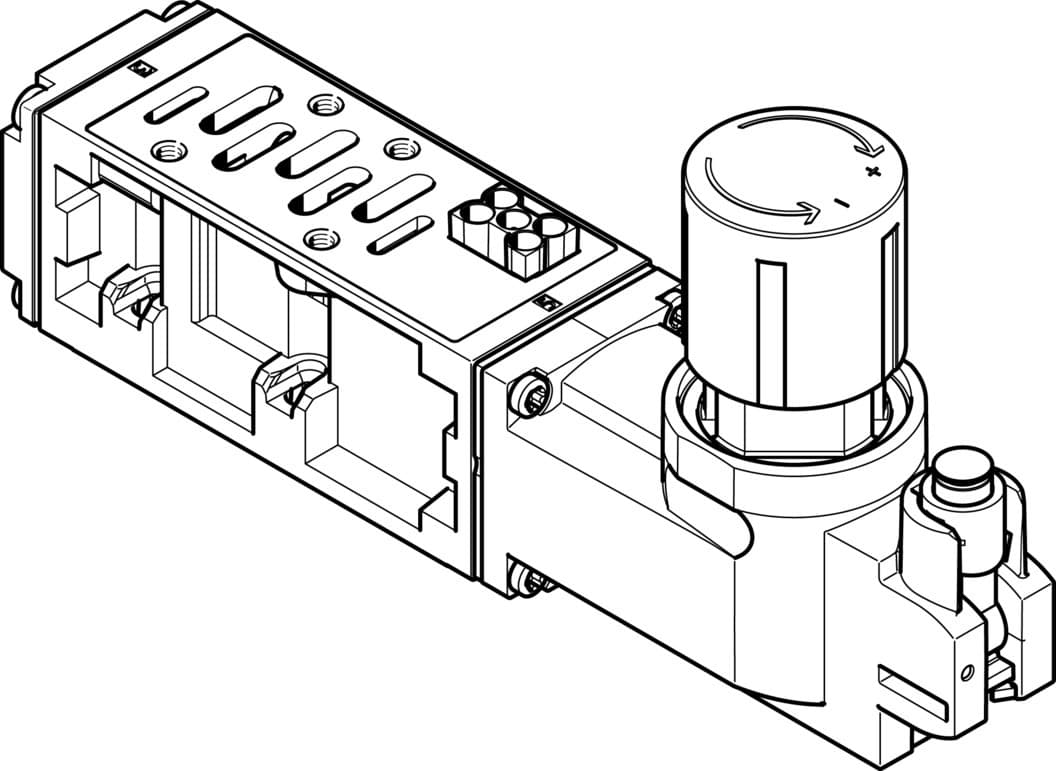

vabf-s2-2-r3c2-c-6
Selling Points
- 1The VABF-S2-2-R3C2-C-6 regulator plate is designed to provide reliable pressure regulation in pneumatic systems, ensuring consistent performance and long service life.
- 2This product adheres to ISO 5599-2 standards, ensuring compatibility with a wide range of pneumatic systems and applications.
- 3With a service-life value of 24 million cycles, the VABF-S2-2-R3C2-C-6 is built to withstand heavy usage and maintain its performance over time.
- 4The regulator plate features an optional mounting position, offering flexibility in system design and installation.
- 5Festo's commitment to quality and reliability ensures that the VABF-S2-2-R3C2-C-6 meets all specifications outlined in data sheets, catalogues, and user documentation.
- 6The VABF-S2-2-R3C2-C-6 has a construction width of 54 mm, making it compact and suitable for various pneumatic applications.
- 7The regulator plate offers an optional mounting position, allowing for flexible installation in different pneumatic systems.
- 8With a service-life value of 24 million cycles, this product is designed to provide long-lasting performance in high-cyclic applications.
- 9The VABF-S2-2-R3C2-C-6 adheres to ISO 5599-2 standards, ensuring compatibility with a wide range of pneumatic systems and applications.
- 10The product reliability data sheet provides detailed information on the characteristic service life values, which are based on testing according to ISO 19973.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 54mm | Based on norm | ISO 5599-2 |
Mounting position | Any | Pneumatic vertical stacking | Pressure regulator for 4 |
Controller function | Outlet pressure constant With secondary exhausting | Symbol | 00991579 |
Optional pressure gauge | Possible | Pressure regulation range MPa | 0.1MPa 0.6MPa |
Pressure regulation range | 1bar 6bar | Pressure regulation range psi | 14.5psi 87psi |
Inlet pressure 1 | 0.5bar 10bar | Inlet pressure 1 MPa | 0.05MPa 1MPa |
Inlet pressure 1 psi | 7.25psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Ambient temperature | -5°C 50°C | Product weight | 1230g |
Vertical stacking mounting type | On manifold sub-base On individual sub-base | Pressure gauge connection | With retaining clamp |
Note on materials | RoHS-compliant | Material of operator panel | PA |
Controller housing material | Die-cast aluminum | Manufacturer ID | 555775 |
Specifications may be subject to change without notice
