Product Model
vabf-s2-2-r5c2-c-6
Selling Points

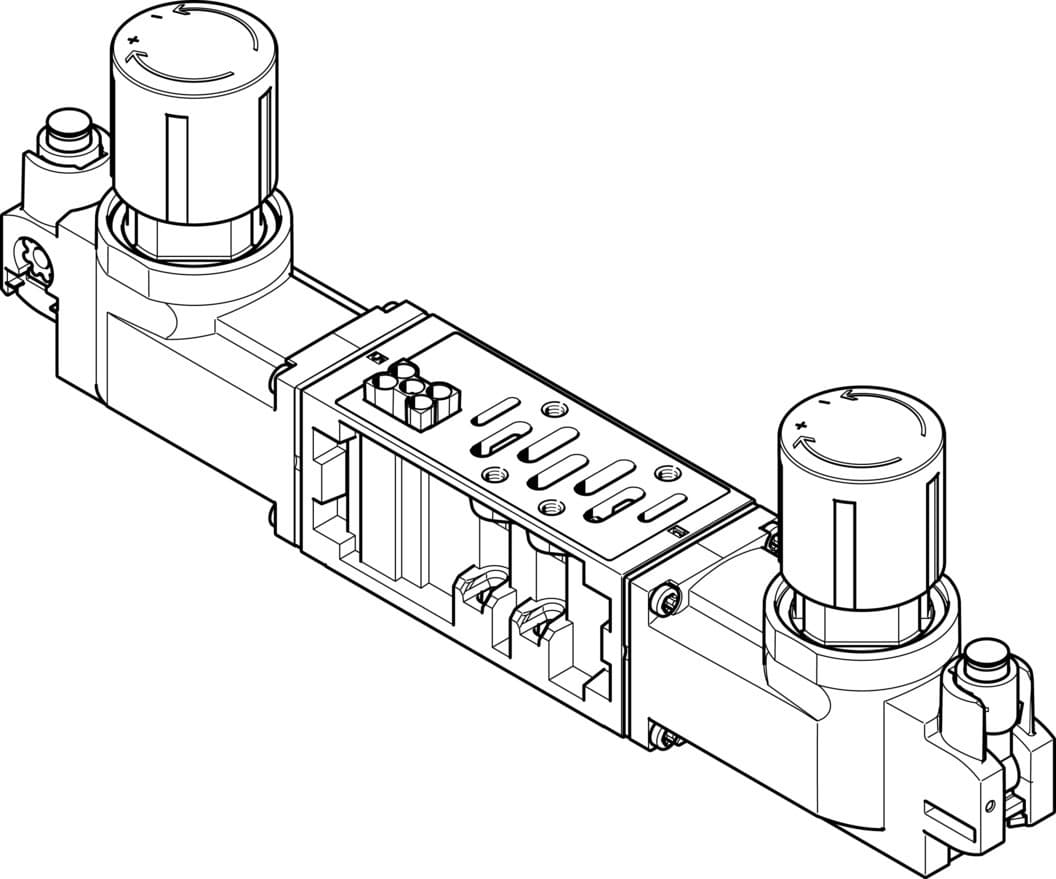

- 1The Festo VABF-S2-2-R5C2-C-6 pressure regulator plate is designed to meet the ISO 5599-2 standard, ensuring compatibility and reliability in various pneumatic systems.
- 2This regulator plate offers a wide pressure regulation range of 0.5 to 6 bar, making it suitable for a variety of industrial applications.
- 3The VABF-S2-2-R5C2-C-6 features a constant output pressure with secondary exhaust, providing precise control over pneumatic flow.
- 4With a durable construction and IP65 protection class, this regulator plate can operate in ambient temperatures ranging from -5 to 50 °C, ensuring reliable performance in diverse environments.
- 5The product has a service life of 24 million cycles, ascertained by testing according to ISO 19973, ensuring long-term reliability and efficiency in pneumatic systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 54mm | Based on norm | ISO 5599-2 |
Mounting position | Any | Pneumatic vertical stacking | Pressure regulator for 2 and 4, reversible |
Controller function | Outlet pressure constant With secondary exhausting | Symbol | 00991939 |
Optional pressure gauge | Possible | Pressure regulation range MPa | 0.05MPa 6MPa |
Pressure regulation range | 0.5bar 60bar | Pressure regulation range psi | 7.25psi 870psi |
Inlet pressure 1 | 0.5bar 10bar | Inlet pressure 1 MPa | 0.05MPa 1MPa |
Inlet pressure 1 psi | 7.25psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Ambient temperature | -5°C 50°C | Product weight | 1990g |
Vertical stacking mounting type | On manifold sub-base On individual sub-base | Pressure gauge connection | With retaining clamp |
Note on materials | RoHS-compliant | Material of operator panel | PA |
Controller housing material | Die-cast aluminum | Manufacturer ID | 555779 |
Specifications may be subject to change without notice
