Product Model

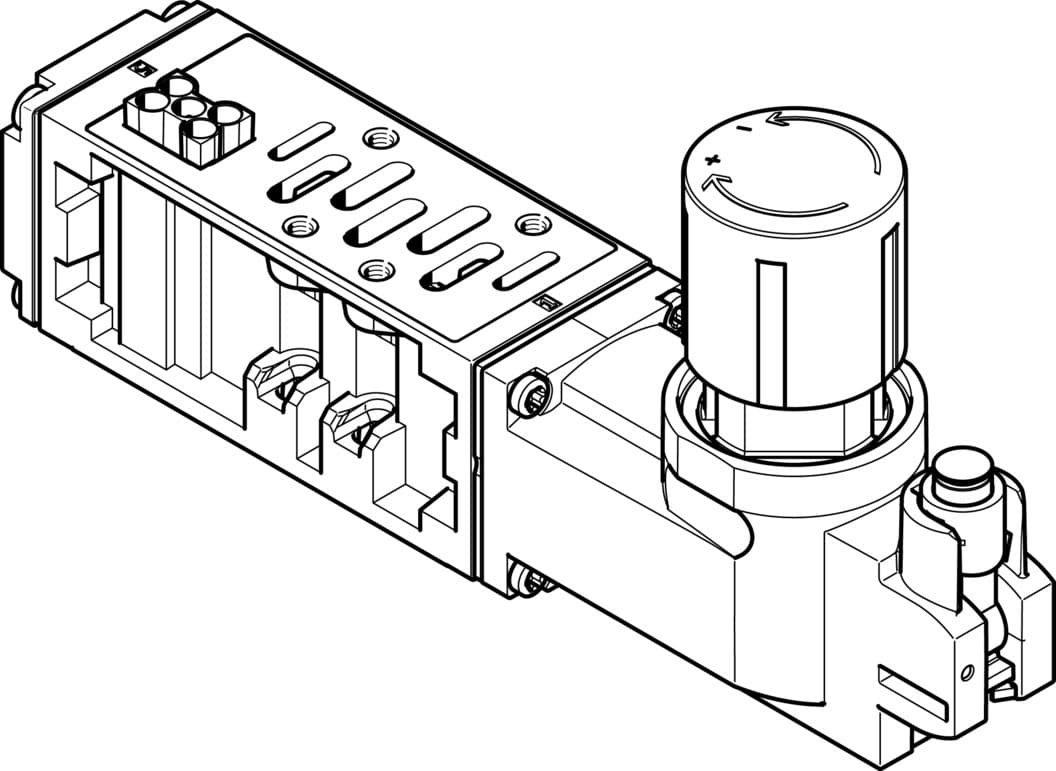

vabf-s2-2-r6c2-c-6
Selling Points
- 1The Festo VABF-S2-2-R6C2-C-6 Regulator Plate offers a width of 54 mm, adhering to the ISO 5599-2 standard for precise pneumatic system integration.
- 2This regulator plate supports reversible pneumatic linkage and maintains a constant output pressure with secondary exhaust, ensuring stable operation.
- 3The VABF-S2-2-R6C2-C-6 features a wide pressure regulation range of 0.5 to 6 bar, accommodating various pneumatic system requirements.
- 4With its corrosion-resistant design (CRC 0) and IP65/NEMA 4 protection, this regulator plate is durable and resistant to environmental stress.
- 5The Festo VABF-S2-2-R6C2-C-6 is compatible with compressed air according to ISO 8573-1:2010 [7:4:4] and can operate with lubricated media for extended use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 54mm | Based on norm | ISO 5599-2 |
Mounting position | Any | Pneumatic vertical stacking | Pressure regulator for 2 reversible |
Controller function | Outlet pressure constant With secondary exhausting | Symbol | 00991546 |
Optional pressure gauge | Possible | Pressure regulation range MPa | 0.05MPa 6MPa |
Pressure regulation range | 0.5bar 60bar | Pressure regulation range psi | 7.25psi 870psi |
Inlet pressure 1 | 0.5bar 10bar | Inlet pressure 1 MPa | 0.05MPa 1MPa |
Inlet pressure 1 psi | 7.25psi 145psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Ambient temperature | -5°C 50°C | Product weight | 1230g |
Vertical stacking mounting type | On manifold sub-base On individual sub-base | Pressure gauge connection | With retaining clamp |
Note on materials | RoHS-compliant | Material of operator panel | PA |
Controller housing material | Die-cast aluminum | Manufacturer ID | 555781 |
Specifications may be subject to change without notice
