Product Model
vabf-s3
Selling Points

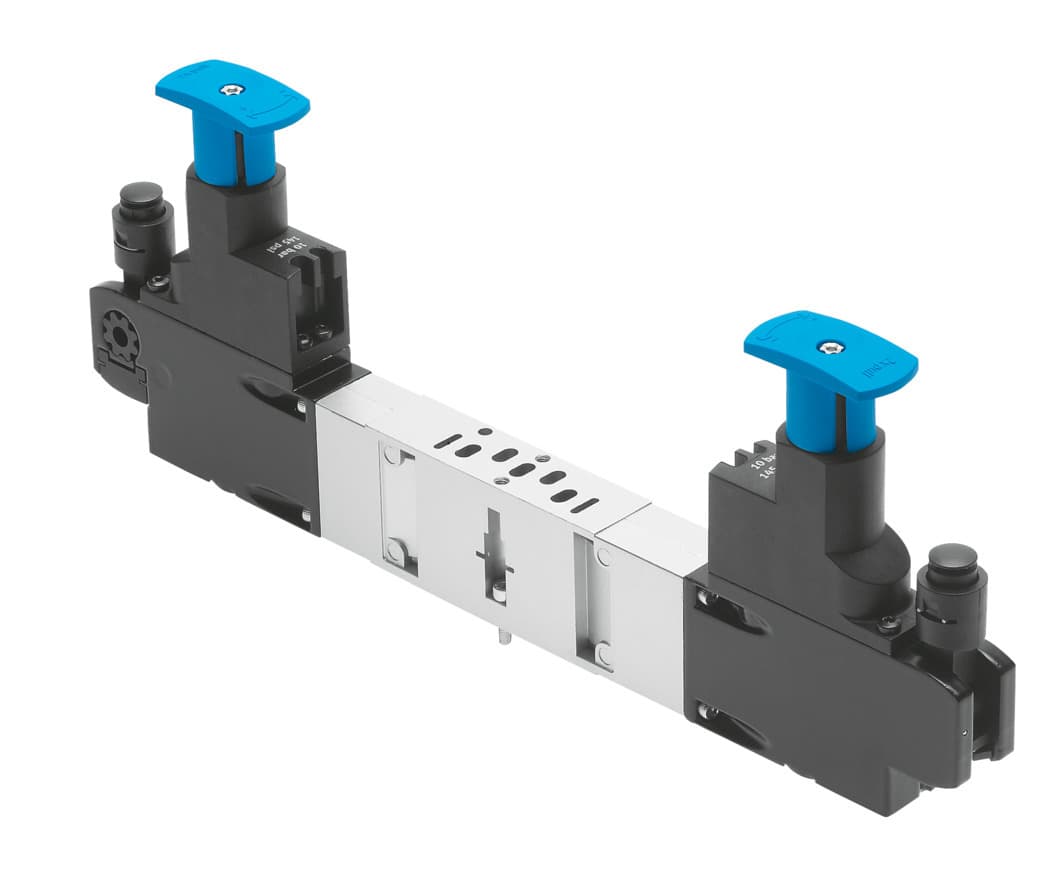

- 1The Festo VABF-S3 regulator plates offer high precision in pneumatic control, ensuring consistent performance in various industrial applications.
- 2These plates feature an IP65 degree of protection, making them suitable for harsh environments and ensuring reliable operation.
- 3Constructed from die-cast aluminum, the VABF-S3 regulator plates provide robustness and durability, meeting RoHS compliance standards.
- 4With operating pressures ranging from -0.9 bar to 10 bar, these plates can handle a wide range of pneumatic requirements, from low to high-pressure applications.
- 5The VABF-S3 series includes various models like the VABF-S3-1-P1A3-G14 and VABF-S3-2-R3C2-C-6, each designed for specific functions such as pressure regulation and exhaust air flow control.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Based on norm | ISO 15407-1 | Mounting position | Any |
Controller function | Outlet pressure constant With secondary exhausting | Optional pressure gauge | Possible |
Inlet pressure 1 | 0.5bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Ambient temperature | -5°C 50°C | Vertical stacking mounting type | On manifold sub-base On individual sub-base |
Pressure gauge connection | With retaining clamp | Note on materials | RoHS-compliant |
Material of operator panel | PA | Controller housing material | Die-cast aluminum |
Manufacturer ID | 546837 |
Specifications may be subject to change without notice
