Product Model
vabf-s3-1-l1d1-c
Selling Points

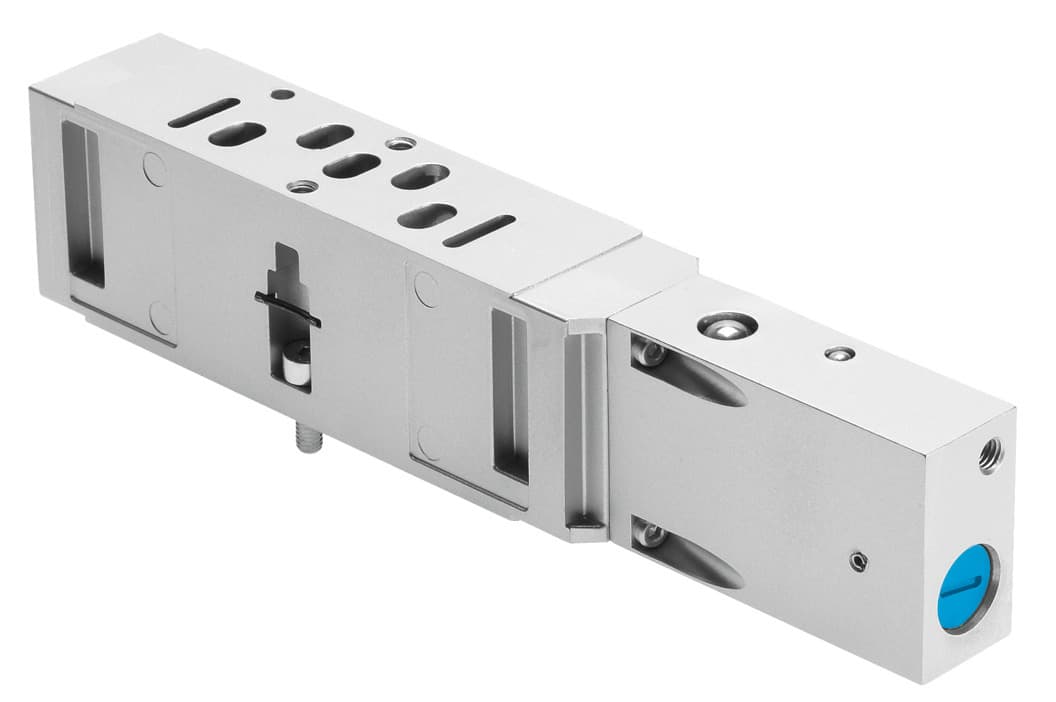

- 1The Festo VABF-S3-1-L1D1-C vertical pressure shut-off plate is designed for pneumatic vertical stacking, ensuring efficient and safe operation in various mounting positions.
- 2This product is ISO 15407-1 compliant, adhering to international standards for pneumatic systems, ensuring reliability and consistency in performance.
- 3With an operating pressure range of -0.9 to 10 bar and a standard nominal flow rate of 800 l/min, it can handle a wide range of compressed air applications.
- 4The VABF-S3-1-L1D1-C is made from die-cast aluminum, providing excellent corrosion resistance (CRC 0) and durability in harsh environments.
- 5This shut-off plate offers IP65 protection and NEMA 4 rating, ensuring it can operate effectively in various ambient temperatures from -5°C to 50°C, making it suitable for diverse industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 26mm | Based on norm | ISO 15407-1 |
Mounting position | Any | Pneumatic vertical stacking | Shut-off for 1 |
Symbol | 00991889 | Operating pressure | -0.9bar 10bar |
Standard nominal flow rate | 800l/min | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Ambient temperature | -5°C 50°C | Product weight | 286g |
Vertical stacking mounting type | On manifold sub-base On individual sub-base | Note on materials | RoHS-compliant |
Housing material | Die-cast aluminum | Manufacturer ID | 543602 |
Specifications may be subject to change without notice
