vabf-s3-1-r1c2-c-6

Selling Points

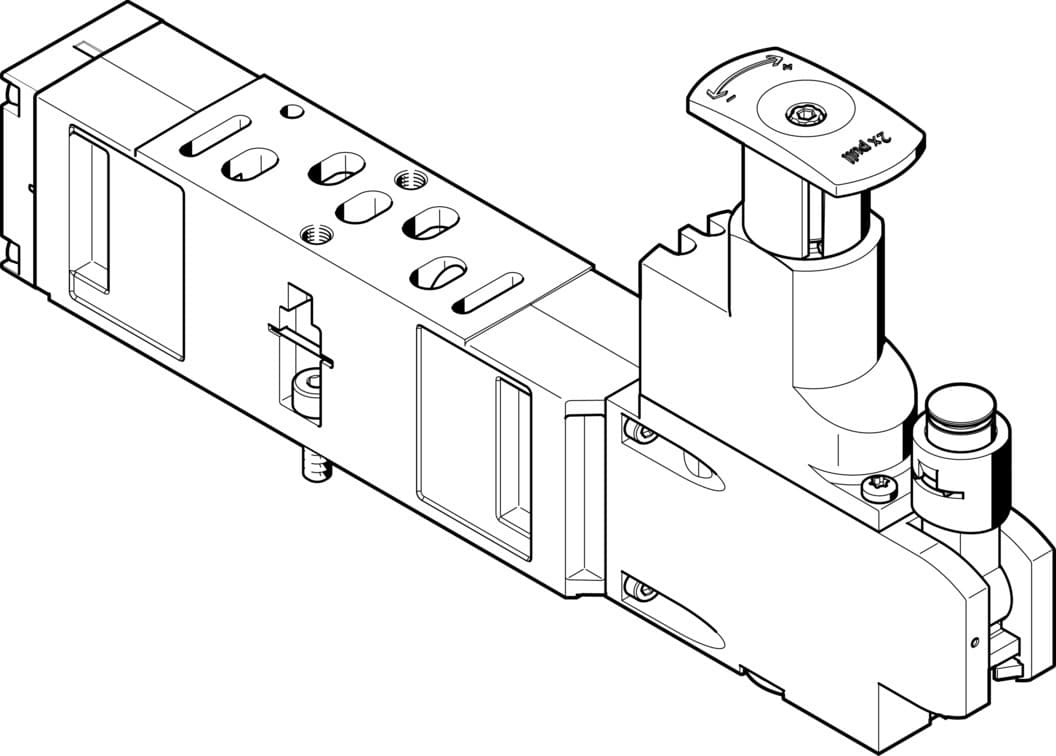

• 1The VABF-S3-1-R1C2-C-6 pressure regulator by Festo is designed to provide consistent output pressure, ensuring stable operation in pneumatic control systems. It features a standard port pattern compliant with ISO 15407-1 and supports pressures up to 6 bar.
• 2This pressure regulator is versatile, allowing for any assembly position and supporting pneumatic vertical stacking. It is built with corrosion-resistant materials, classified as CRC 0, and has an IP65/NEMA 4 protection class.
• 3The VABF-S3-1-R1C2-C-6 operates within a wide temperature range of -5 to 50 °C, making it suitable for various industrial environments. It also supports lubricated operation, which is required for further operation.
• 4The regulator plate is compatible with valve terminals VDMA-01/02 and offers a pressure regulation range of 0.5 to 6 bar. It includes a controller function with secondary exhaust and allows for possible pressure gauge selection.
• 5With a service life value B10 of 10 million cycles, this pressure regulator is built to last. Its reliability is based on ISO 19973 standards, ensuring high performance and durability in pneumatic fluid power applications.
