Product Model

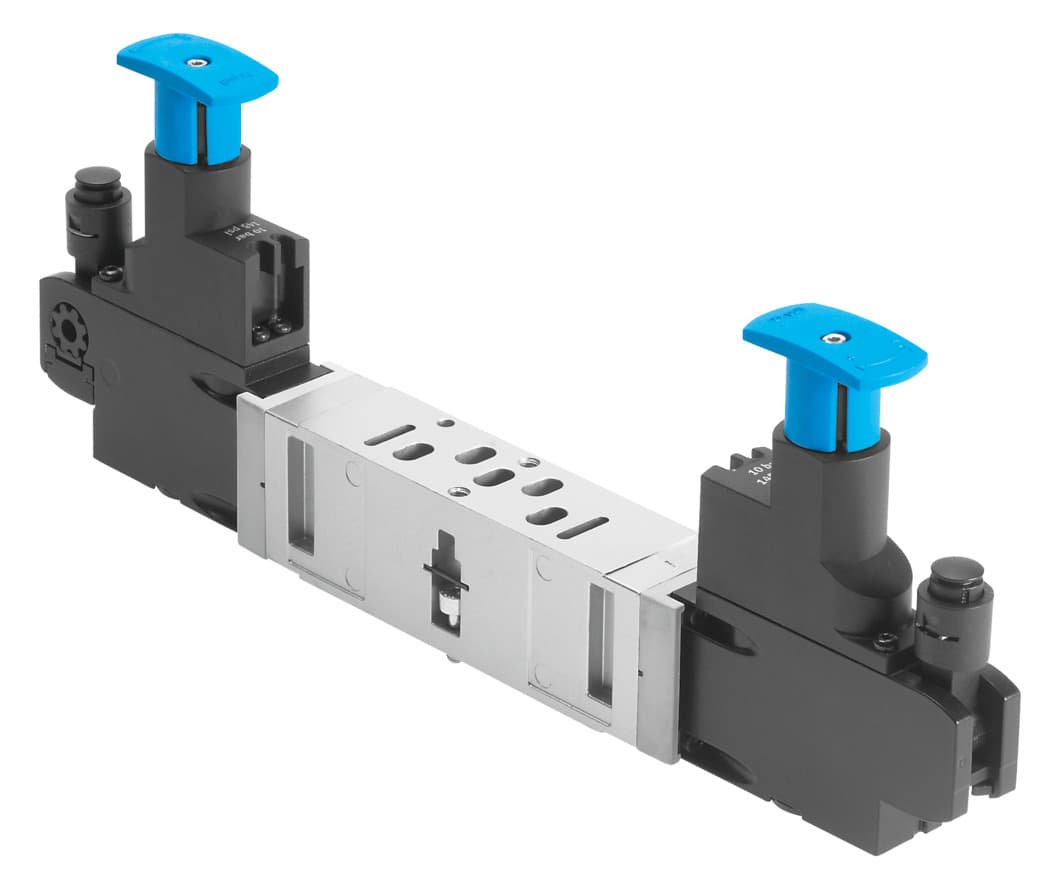

vabf-s3-1-r4c2-c-6
Selling Points
- 1The Festo VABF-S3-1-R4C2-C-6 regulator plate offers a pressure regulation range of 2 to 6 bar, making it ideal for various pneumatic applications.
- 2This regulator plate maintains an output pressure constant with secondary venting, ensuring reliable and precise control.
- 3Compatible with compressed air to ISO 8573-1:2010 [7:4:4], it supports lubricated operation for extended service life.
- 4Featuring a corrosion-resistant class of CRC 0, this product is designed to withstand harsh environments without corrosion stress.
- 5With a service life of 10 million cycles and a product weight of 430 grams, the VABF-S3-1-R4C2-C-6 is built for durability and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 26mm | Based on norm | ISO 15407-1 |
Mounting position | Any | Pneumatic vertical stacking | Pressure regulator for 2 and 4 |
Controller function | Outlet pressure constant With secondary exhausting | Symbol | 00991580 |
Optional pressure gauge | Possible | Pressure regulation range MPa | 0.2MPa 0.6MPa |
Pressure regulation range | 2bar 6bar | Pressure regulation range psi | 29psi 87psi |
Inlet pressure 1 | 0.5bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 0 - No corrosion stress |
LABS (PWIS) conformity | VDMA24364-B1/B2-L | Degree of protection | IP65 NEMA 4 |
Ambient temperature | -5°C 50°C | Product weight | 430g |
Vertical stacking mounting type | On manifold sub-base On individual sub-base | Pressure gauge connection | With retaining clamp |
Note on materials | RoHS-compliant | Material of operator panel | PA |
Controller housing material | Die-cast aluminum | Manufacturer ID | 543537 |
Specifications may be subject to change without notice
