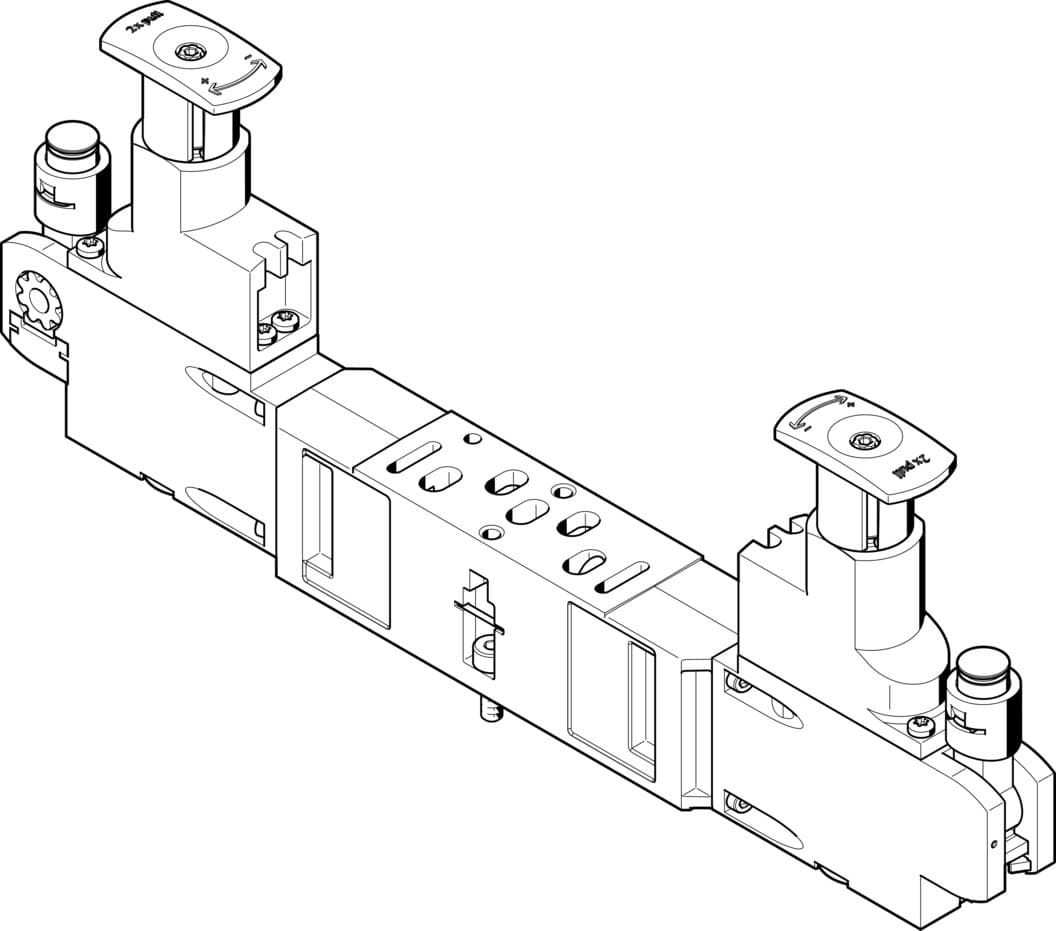

Festo VABF-S3-1-R5C2-C-10 Regulator Plate: Precision Air Pressure Regulation

Selling Points

1The Festo VABF-S3-1-R5C2-C-10 Regulator Plate is designed to provide precise air pressure regulation, ensuring consistent output pressure in pneumatic systems.
2This regulator plate features a compact construction width of 26 mm, making it suitable for various mounting positions and applications.
3With its optional vertical pneumatic linkage, the VABF-S3-1-R5C2-C-10 offers flexibility in system design and installation.
4The regulator plate supports pressure regulation from 0.05 MPa to 0.85 MPa (0.5 bar to 8.5 bar), catering to a wide range of pneumatic system requirements.
5Built with die-cast aluminum and compliant with RoHS standards, the VABF-S3-1-R5C2-C-10 ensures durability and environmental sustainability.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Width	26mm	Based on norm	ISO 15407-1
Mounting position	Any	Pneumatic vertical stacking	Pressure regulator for 2 and 4, reversible
Controller function	Outlet pressure constant With secondary exhausting	Symbol	00991862
Optional pressure gauge	Possible	Pressure regulation range MPa	0.05MPa 0.85MPa
Pressure regulation range	0.5bar 8.5bar	Pressure regulation range psi	7.25psi 123.25psi
Inlet pressure 1	0.5bar 10bar	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	0 - No corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Degree of protection	IP65 NEMA 4
Ambient temperature	-5°C 50°C	Product weight	430g
Vertical stacking mounting type	On manifold sub-base On individual sub-base	Pressure gauge connection	With retaining clamp
Note on materials	RoHS-compliant	Material of operator panel	PA
Controller housing material	Die-cast aluminum	Manufacturer ID	543543

Specifications may be subject to change without notice
