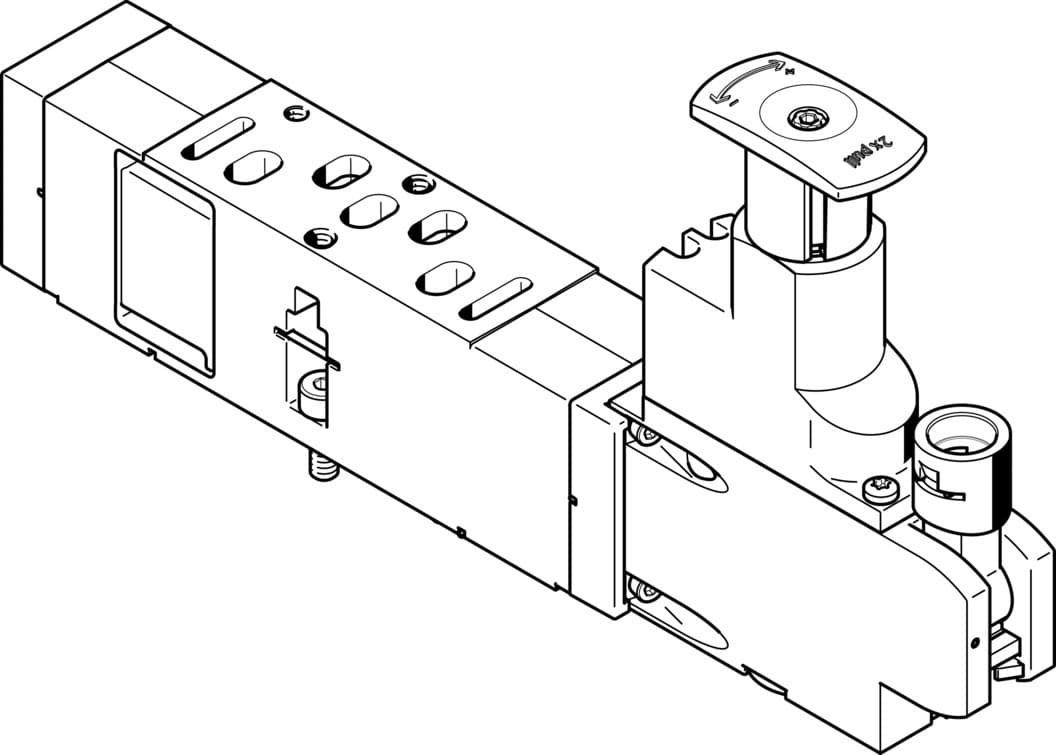

Festo VABF-S3-1-R7C2-C-10 Regulator Plate - Precision Pneumatic Control

Selling Points

1The Festo VABF-S3-1-R7C2-C-10 Regulator Plate is designed for valve terminals VDMA-01/02, ensuring compatibility with a wide range of pneumatic systems.
2This regulator plate operates up to 10 bar pressure, making it suitable for high-pressure applications in industrial settings.
3Compliant with the ISO 15407-1 standard, the VABF-S3-1-R7C2-C-10 ensures reliability and consistency in pneumatic control.
4With a width of 26 mm, this regulator plate is compact and versatile, allowing for easy integration into various pneumatic systems.
5The VABF-S3-1-R7C2-C-10 features optional assembly positions and supports pneumatic vertical stacking, enhancing its flexibility and usability in different applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Width	26mm	Based on norm	ISO 15407-1
Mounting position	Any	Pneumatic vertical stacking	Pressure regulator for 4 reversible
Controller function	Outlet pressure constant With secondary exhausting	Symbol	00991945
Optional pressure gauge	Possible	Pressure regulation range MPa	0.05MPa 0.85MPa
Pressure regulation range	0.5bar 8.5bar	Pressure regulation range psi	7.25psi 123.25psi
Inlet pressure 1	0.5bar 10bar	Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media	Operation with oil lubrication possible (required for further use)	Corrosion resistance class (CRC)	0 - No corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L	Degree of protection	IP65 NEMA 4
Ambient temperature	-5°C 50°C	Product weight	305g
Vertical stacking mounting type	On manifold sub-base On individual sub-base	Pressure gauge connection	With retaining clamp
Note on materials	RoHS-compliant	Material of operator panel	PA
Controller housing material	Die-cast aluminum	Manufacturer ID	546793

Specifications may be subject to change without notice
