Product Model

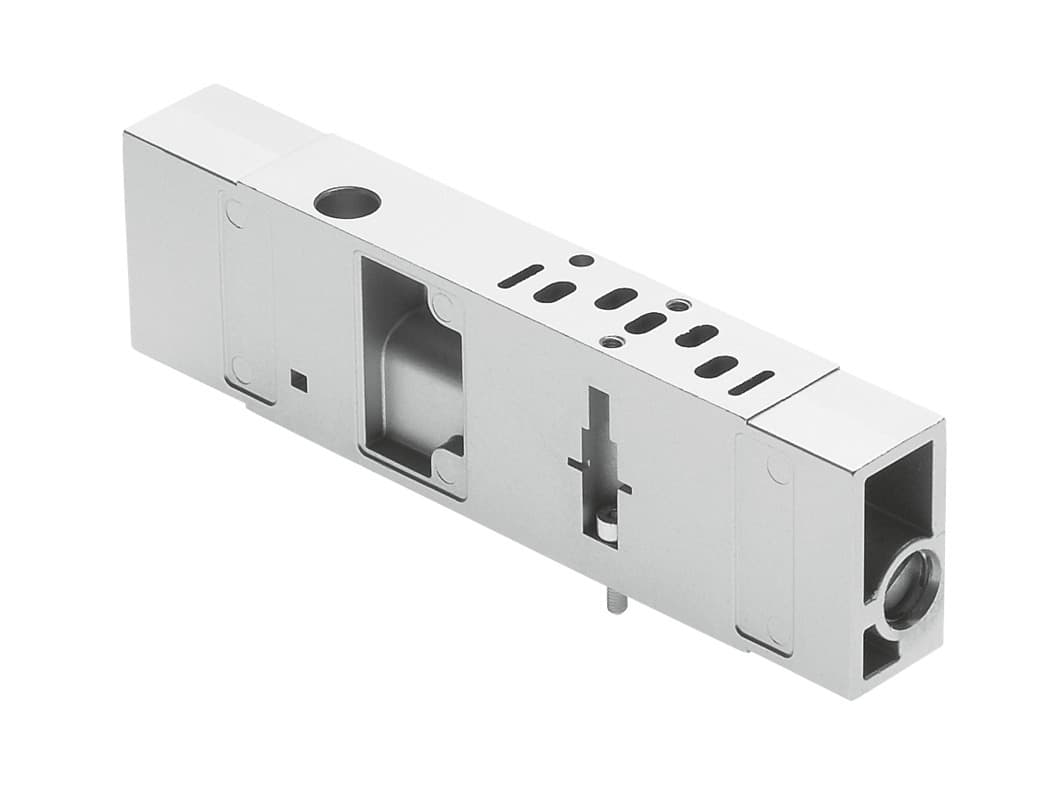

vabf-s3-2-f1b1-c
Selling Points
- 1The VABF-S3-2-F1B1-C throttle plate offers precise control over exhaust air flow, ensuring optimal performance in pneumatic systems.
- 2With any mounting position possible, this throttle plate can be easily integrated into various pneumatic vertical stacking configurations.
- 3Meets ISO 15407-1 standards and is RoHS-compliant, ensuring it adheres to industry norms and environmental regulations.
- 4Made from die-cast aluminum, this throttle plate provides a durable and corrosion-resistant housing, suitable for a wide range of operating conditions.
- 5Compatible with compressed air operating pressures from -0.9 to 10 bar, making it versatile for various pneumatic applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 18mm | Based on norm | ISO 15407-1 |
Mounting position | Any | Pneumatic vertical stacking | Throttle plate exhaust air flow control |
Symbol | 00991467 | Operating pressure | -0.9bar 10bar |
Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
Corrosion resistance class (CRC) | 0 - No corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
Degree of protection | IP65 NEMA 4 | Ambient temperature | -5°C 50°C |
Product weight | 228g | Vertical stacking mounting type | On manifold sub-base On individual sub-base |
Note on materials | RoHS-compliant | Housing material | Die-cast aluminum |
Manufacturer ID | 543603 |
Specifications may be subject to change without notice
